(070-01[1]) - POWER TAKE-OFF ASSEMBLY

Запчасти Case CX31B (070-01[1]) - POWER TAKE-OFF ASSEMBLY (00) - GENERAL & PICTORIAL INDEX

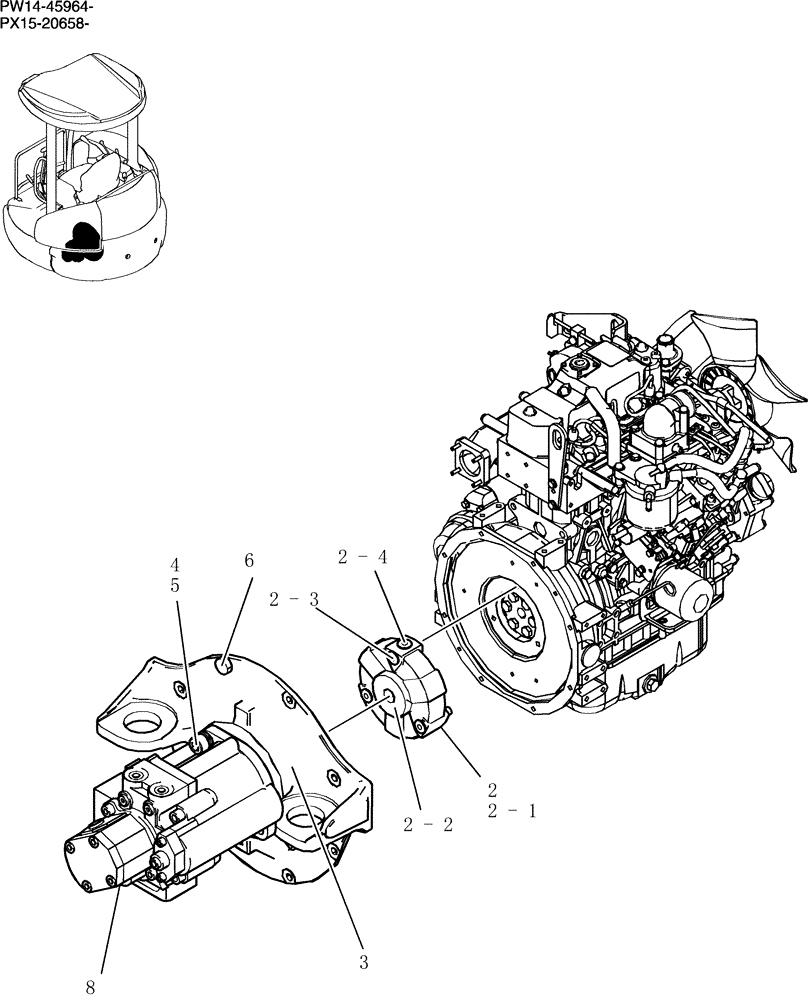

Схема запчастей Case CX31B - (070-01[1]) - POWER TAKE-OFF ASSEMBLY (00) - GENERAL & PICTORIAL INDEX
3
2-3
2
2-1
6
5
2-2
4
8
2-4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW30P00007F1

Power Take-Off

1шт.

2

PW30P01007F1

COUPLING

1шт.

2-1

PW30P01002S001

COUPLING

1шт.

2-2

PW30P01002S002

HUB

1шт.

2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

Cap

3шт.

2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

Cap

3шт.

3

PW30P01005P2

BRACKET

Bracket

1шт.

4

PV17M01003D1

SCREW

Cap

2шт.

5

ZW16K12000

WASHER

2шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.

8

PX10V00013F1

HYDRAULIC PUMP

Hyd

1шт.

See(C.P.M)

1шт.
