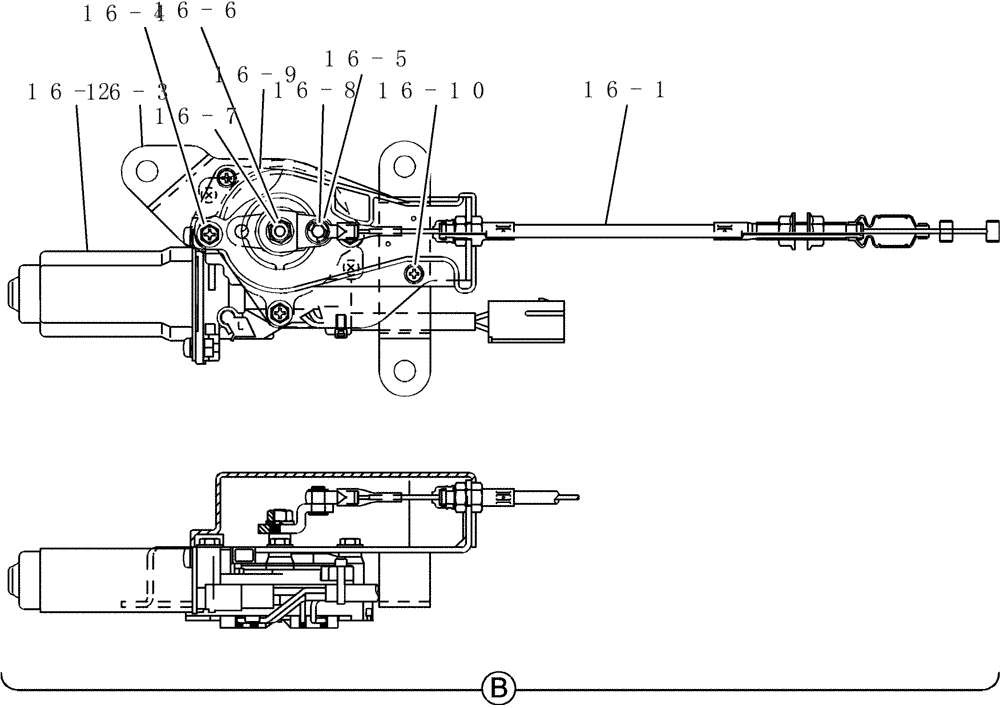

Запчасти Case CX31B (065-01[2]) - CONTROL ASSEMBLY, ENGINE (WITH DECEL) (00) - GENERAL & PICTORIAL INDEX
![Схема запчастей Case CX31B - (065-01[2]) - CONTROL ASSEMBLY, ENGINE (WITH DECEL) (00) - GENERAL & PICTORIAL INDEX](https://partsell.ru/storage/images/casece/46323.png)
16-6
16-1
16-5
16-10
16-4
16-9
16-2
16-7
16-3
16-8
№
Артикул
Название
Примечание
Количество
16-1
PW20S00012S001
CABLE
1шт.
16-2
PM20S00009S002
GOVERNOR
1шт.
16-3
PW20S00012S003
BRACKET
1шт.
16-4
PM20S00009S004
SCREW
3шт.
16-5
PM20S00009S005
LEVER ASSY.
1шт.
16-6
PM20S00009S006
LOCK WASHER
1шт.
16-7
PM20S00009S007
NUT
1шт.
16-8
PM20S00009S008
RING
1шт.
16-9
PM20S0009S009
1шт.
16-10
PM20S00009S010
SCREW
2шт.
Выбрано товаров: 10
