(612-60[1Z82]) - HYDRAULIC LINES, ARM 1.47M (NIBLLER & BREAKER)

Запчасти Case CX31B (612-60[1Z82]) - HYDRAULIC LINES, ARM 1.47M (NIBLLER & BREAKER) (58) - ATTACHMENTS/HEADERS

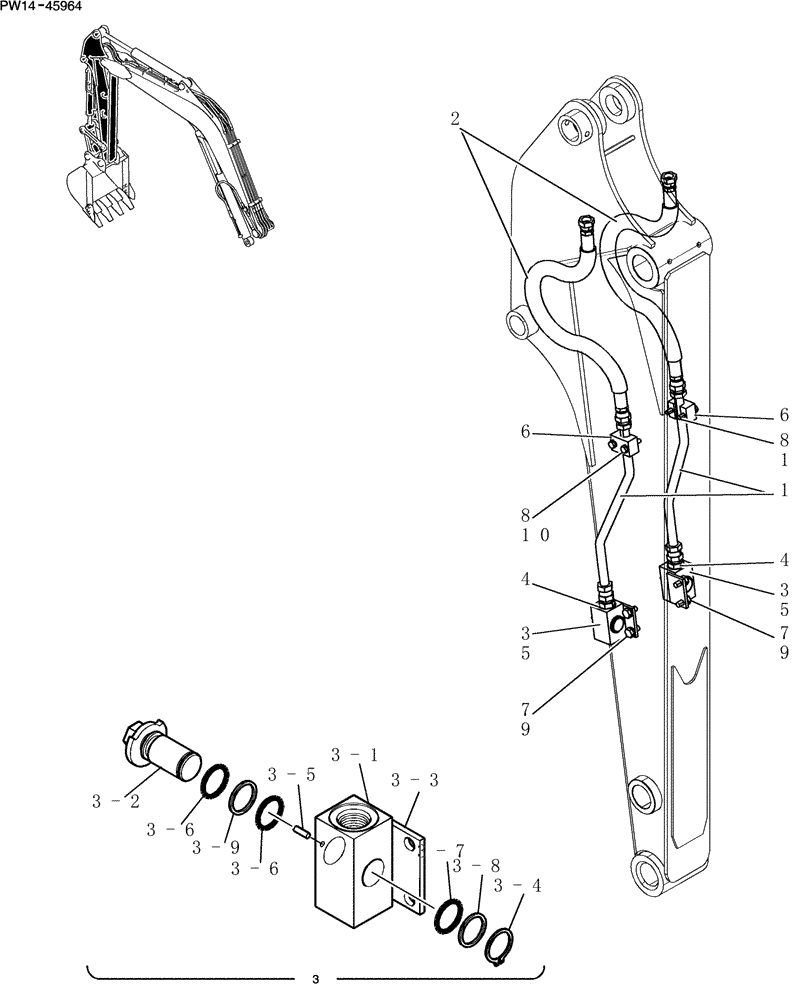

Схема запчастей Case CX31B - (612-60[1Z82]) - HYDRAULIC LINES, ARM 1.47M (NIBLLER & BREAKER) (58) - ATTACHMENTS/HEADERS
3-6
3-6
3-8
7
9
2
3-4
8
3-3
7
9
3-9
4
8
3
10
10
3-2
5
3-7
6
4
3-1
3
1
5
3-5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW43H00025F1

Hyd Arm

1шт.

1

PW43H01037P1

TUBE

2шт.

2

HX55L08070DY

HOSE,12.7mm ID x 700mm L

2шт.

3

PF25V00001F2

VALVE

Stop

2шт.

3-1

PF25V00001S001

BODY

Valve, (with 1/2" Pipe Thread)

1шт.

3-2

PF25V00001S002

SHAFT

1шт.

3-3

PF25V00001S003

PLATE

1шт.

3-4

ZR16X03000

SNAP RING

Retaining

1шт.

3-5

ZD26D05010

SPRING

Pin, Spring

1шт.

3-6

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

2шт.

3-7

ZD12G03000

O-RING,29.40mm ID x 35.60mm OD x 3.10mm

1шт.

3-8

ZD75G03000

BACK-UP RING

1шт.

3-9

ZD75G02500

BACK-UP RING

1шт.

4

HH25S08008G1

HYD CONNECTOR

2шт.

5

ZF72X08000

Sems

2шт.

6

PX43H01017P1

CLAMP

Cap

2шт.

7

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

4шт.

8

ZS18C08040

SCREW,Hex, M8 x 40mm

Cap

4шт.

9

ZW26X10000

LOCK WASHER

4шт.

10

ZW26X08000

LOCK WASHER

Lock

4шт.
