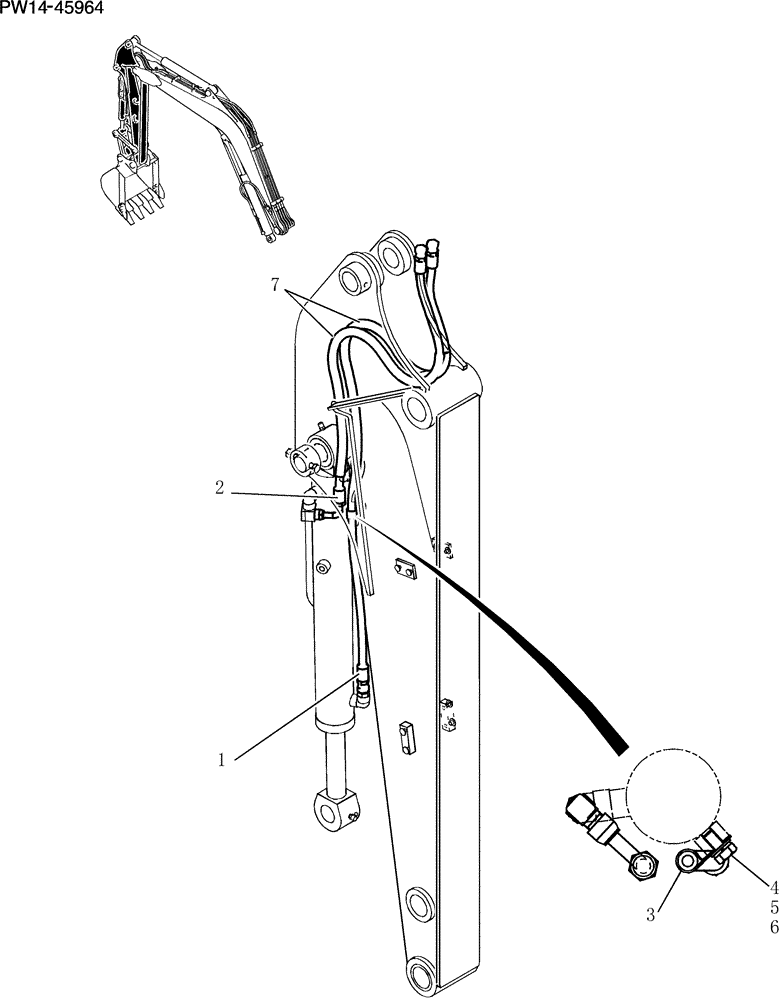

Запчасти Case CX31B (612-17[1Z82]) - HYDRAULIC LINES, ARM 1.47M (58) - ATTACHMENTS/HEADERS

PW43H00030F1

Hyd , Arm

1шт.

1

PM42H01042DK

HOSE,9.5mm ID x 1570mm L

1шт.

2

PX42H01169D3

HOSE,9.5mm ID x 1110mm L

1шт.

3

ZC46X16011

CLIP

1шт.

4

ZW16X10000

WASHER

1шт.

5

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

6

ZW26X10000

LOCK WASHER

1шт.

7

2414Z199D90

PROTECTIVE SLEEVE

Guard

2шт.
