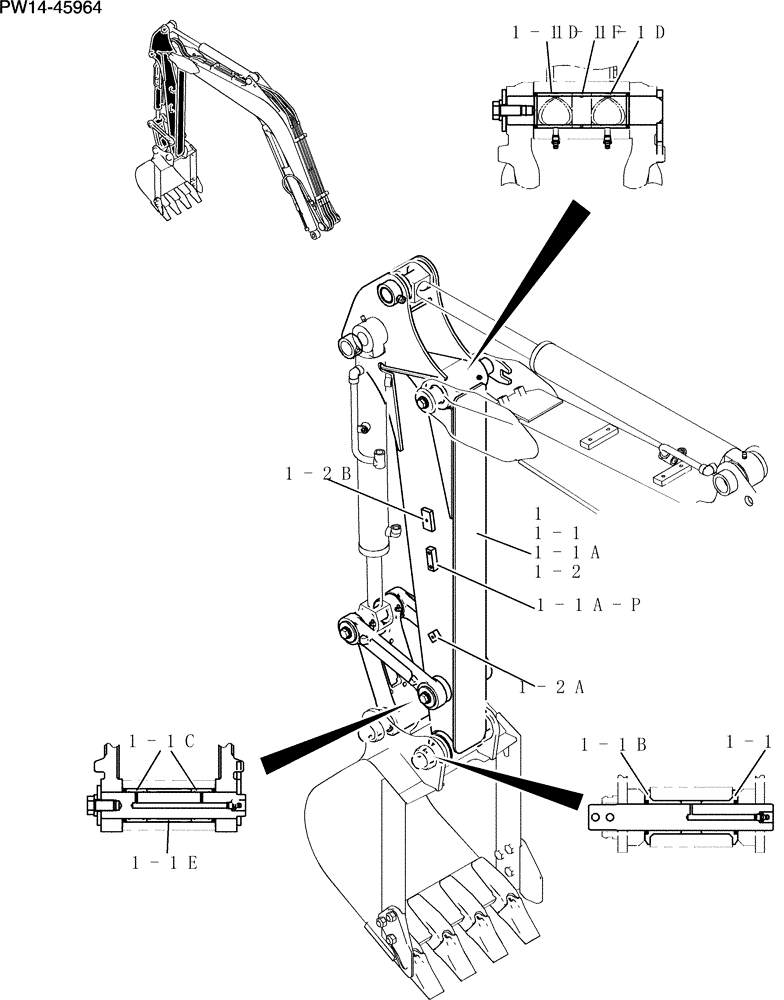

Запчасти Case CX31B (580-60[1Z82]) - ARM ASSEMBLY, STD 1.18M ROTORY, NIBBLER & BREAKER (58) - ATTACHMENTS/HEADERS

PW12B00173F1

Arm

1шт.

1

PW12B00174F1

Arm

1шт.

1-1

PW12B00109F1

ARM

1шт.

1-1a

PW12B00110P2

Arm

1шт.

1-1a-p

PV12B01227P1

BLOCK

Tapped

2шт.

1-1b

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

1-1c

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

1-1d

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

1-1e

PW12B01208D1

COLLAR

1шт.

1-1f

PX12B01016P1

COLLAR

1шт.

1-2

PW12B00174F1

Arm

1шт.

1-2a

2416T12874

BLOCK

Block, Tapped

1шт.

1-2b

2416T10838D2

BLOCK

Tapped

1шт.
