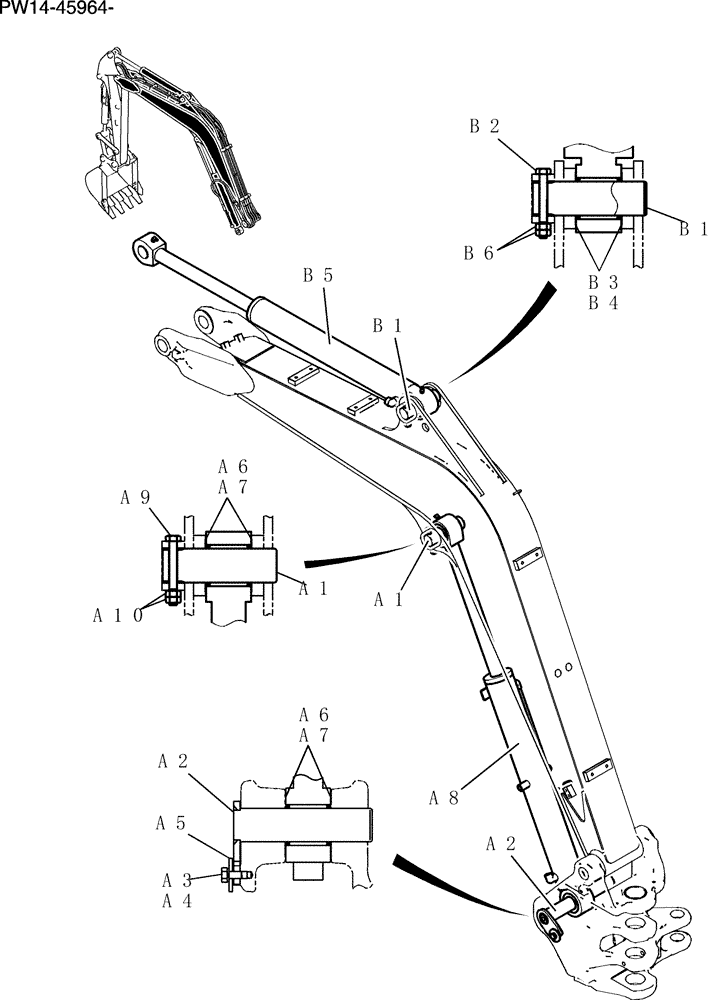

Запчасти Case CX31B (552-01[1Z82]) - CYLINDER INSTAL CAB (58) - ATTACHMENTS/HEADERS

PW02B00121F1

Cylinder

1шт.

a1

PW02B01306P1

PIN,45mm OD x 151mm L

1шт.

a2

PX02B01263P1

PIN,45mm OD x 187mm L

1шт.

a3

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

a4

ZW26X10000

LOCK WASHER

1шт.

a5

2418T21137

WASHER

1шт.

a6

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

2шт.

a7

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

3шт.

a8

PW01V00069F1

CYLINDER,Double Acting, 45mm Rod, 540mm Stroke

Boom

1шт.

See(C.P.M)

1шт.

a9

HS18C10085G2

BOLT

Cap

1шт.

a10

ZN18C10008

NUT

2шт.

PW02B00120F1

Cylinder

1шт.

b1

PW02B01306P1

PIN,45mm OD x 151mm L

1шт.

b2

HS18C10085G2

BOLT

Cap

1шт.

b3

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

1шт.

b4

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

b5

PW01V00070F1

CYLINDER

Arm

1шт.

See(C.P.M)

1шт.

b6

ZN18C10008

NUT

2шт.
