(450-01[1Z82]) - BOOM ASSMBLY, STD 2.3M

Запчасти Case CX31B (450-01[1Z82]) - BOOM ASSMBLY, STD 2.3M (58) - ATTACHMENTS/HEADERS

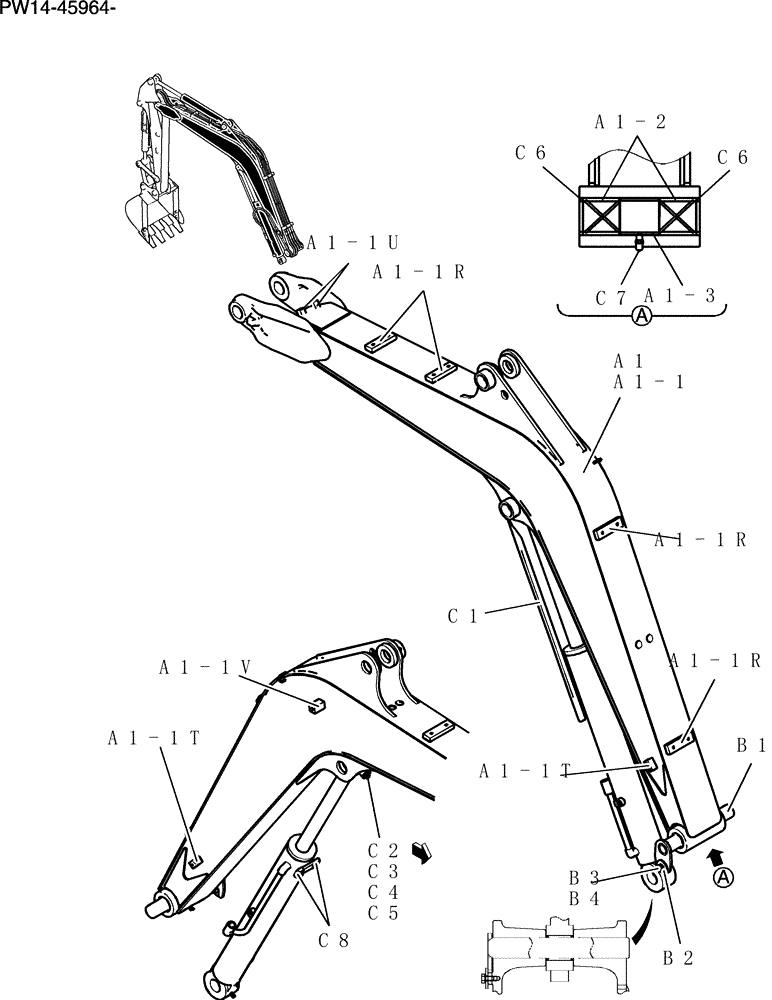

Схема запчастей Case CX31B - (450-01[1Z82]) - BOOM ASSMBLY, STD 2.3M (58) - ATTACHMENTS/HEADERS
a1-1t
a1-1t
a1-1r
c3
c7
c2
b3
b4
a1-2
c4
a1-1
a1-1u
a1-1v
b1
c6
c1
a1-3
c8
a1-1r
c5
a1
c6
b2
a1-1r
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW02B00123F1

Boom

1шт.

a1

PW02B00124F1

BOOM

Hoe

1шт.

a1-1

NSS

NOT SOLD SEPARAT

Boom, Hoe

1шт.

a1-1r

PM02B01266P1

BLOCK

Tapped

4шт.

a1-1t

PW02B01260P1

BLOCK

Tapped

2шт.

a1-1u

PM02B01253P1

BLOCK

Tapped

2шт.

a1-1v

R16T0373D7

BLOCK

Tapped

1шт.

a1-2

PX02B01106P1

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

a1-3

PW02B01215P1

COLLAR

1шт.

PX02B00168F1

Boom

1шт.

b1

PX02B01299P1

PIN

1шт.

b2

2418T21137

WASHER

1шт.

b3

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

b4

ZW26X10000

LOCK WASHER

1шт.

PX02B00161F1

Boom

1шт.

c1

PX02B01245P1

COVER

1шт.

c2

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

c3

ZW26X10000

LOCK WASHER

1шт.

c4

ZW16H10000

WASHER

1шт.

c5

PN03M01009D2

WASHER

1шт.

c6

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

Dust

2шт.

c7

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

Grease

1шт.

c8

PX02B01244P1

GUIDE,25mm ID x 27mm OD x 30mm L

Boom Cylinder Cover (Part will Look Like a White Nylon Tube)

2шт.
