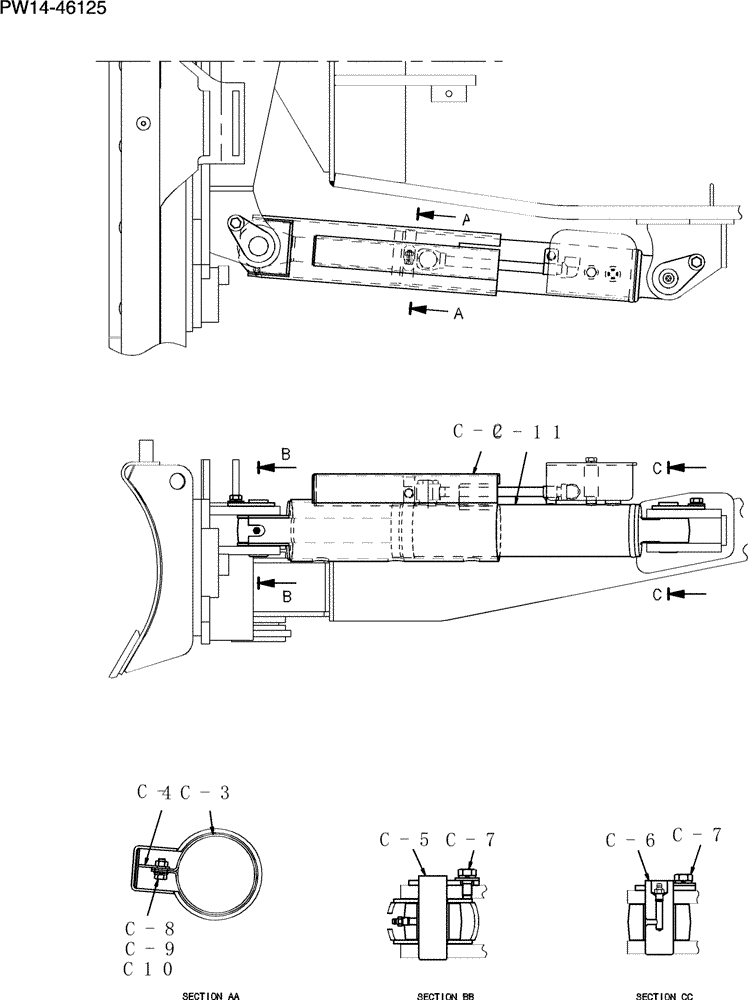

Запчасти Case CX31B (420-72[2]) - DOZER ASSEMBLY, ANGLE DOZER (56) - GRAPE HARVESTER SHAKERS

.

Dozer

1шт.

PW51B00098F1

Dozer

1шт.

a1

PW51B00099F1

FRAME

Dozer

1шт.

a1-1

PW51B01207P1

CUTTING EDGE

Dozer

1шт.

a1-2

PW51B01106P1

BUSHING

Bushing

2шт.

a2

PW51B01212F1

FRAME

1шт.

a2-1

PW51B01213P1

Frame

1шт.

a2-2

PW51B01039P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

a3

PX51B01138P1

PIN

Pin

1шт.

a4

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

1шт.

PX51B00071F1

Cylinder

1шт.

b1

PH12B01009P1

PIN,45mm OD x 137mm L

2шт.

b2

ZS18C10085

SCREW,Hex, M10 x 85mm

Cap

2шт.

b3

ZN18C10008

NUT

4шт.

b4

PX01V00043F2

CYLINDER

Assy

1шт.

See(C.P.M)

1шт.

b7

B16T0442D64

SHIM,70mm OD x 47mm ID x 1.2mm Thk

(1.2)

2шт.

b8

B16T0442D65

SHIM,70mm OD x 47mm ID x 1.6mm Thk

(1.6)

2шт.

b9

B16T0442D66

SHIM,70mm OD x 47mm ID x 2.3mm Thk

(2.3)

2шт.

PW51B00065F1

CYLINDER

1шт.

c2

PW51B01123P1

PLATE

Cover

1шт.

c3

PW51B01121P1

FRAME

Plate

1шт.

c4

PW51B01110P1

PLATE

Plate

1шт.

c5

PY51B01034P2

PIN

Pin

1шт.

c6

PW51B01107P1

PIN

Pin

1шт.

c7

ZM32C12025

BOLT

Sems

2шт.

c8

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

c9

ZW26X08000

LOCK WASHER

Lock

1шт.

c10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

c11

PW01V00052F2

HYDRAULIC CYLINDER

Cylinder

1шт.

See(C.P.M)

1шт.

PW51B00028F1

Dozer

1шт.

d1

PW51B01028P1

PIN,40mm OD x 127mm L

2шт.

d2

ZS18C10080

SCREW,Hex, M10 x 80mm

Cap

2шт.

d3

ZN18C10008

NUT

4шт.

d4

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

Dust

4шт.

d5

B16T0442D67

SHIM,65mm OD x 42mm ID x 1.2mm Thk

(1.2)

2шт.

d6

B16T0442D68

SHIM,65mm OD x 42mm ID x 1.6mm Thk

(1.6)

2шт.

d7

B16T0442D69

SHIM,65mm OD x 42mm ID x 2.3mm Thk

(2.3)

2шт.

PX51B00093F1

Dozer

1шт.

e1

PX51B01081P1

COVER

1шт.

e2

PW51B01115P1

COVER

Cover

1шт.

e3

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

2шт.

e4

ZW16H10000

WASHER

1шт.

e5

ZW26X10000

LOCK WASHER

1шт.

e6

ZS18C10075

SCREW,Hex, M10 x 75mm

Cap

1шт.

e7

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.

e8

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

Grease

3шт.
