Запчасти Case CX31B (719-17[2]) - CONTROL LINES, VALVE (WITH A PUMP Z PORT) (36) - PNEUMATIC SYSTEM

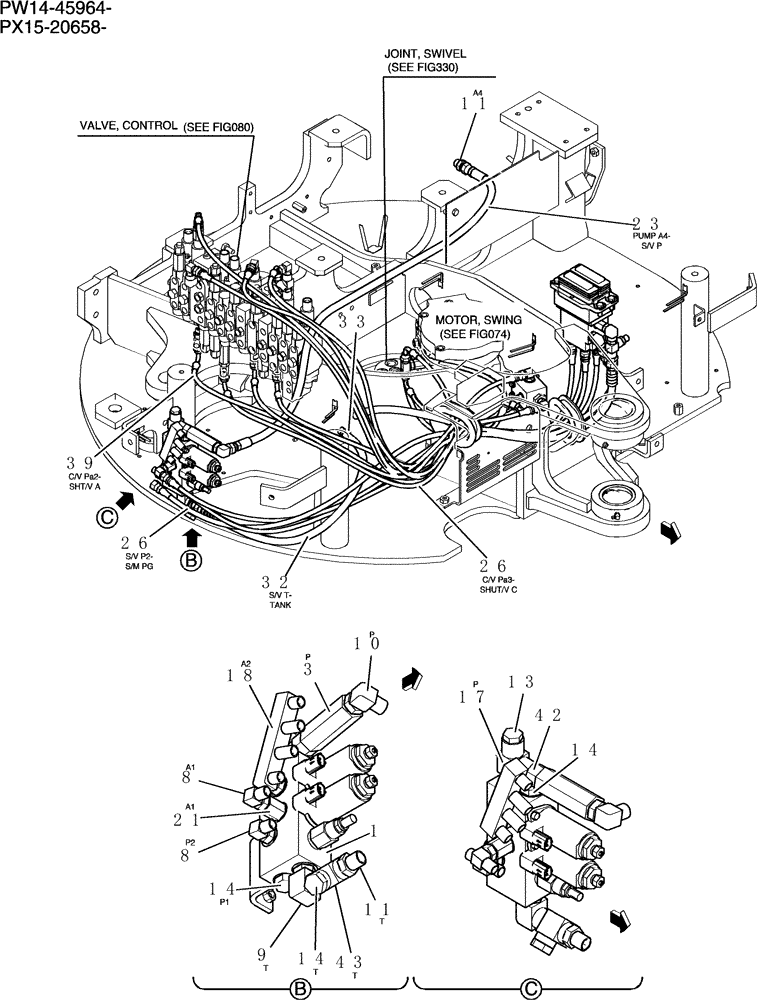

Схема запчастей Case CX31B - (719-17[2]) - CONTROL LINES, VALVE (WITH A PUMP Z PORT) (36) - PNEUMATIC SYSTEM
10
39
26
21
14
18
3
9
17
23
11
8
11
43
32
42
1
13
14
26
33
8
14

Артикул

Название

Примечание

Количество

PW64H00069F1

Control , Valve (With A Pump Z Port)

1шт.

1

PX35V00003F1

VALVE

olenoid

1шт.

See(C.P.M)

1шт.

2

PH26V00001F1

VALVE

Shuttle

1шт.

See(C.P.M)

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

Inline

1шт.

4

PW64H01072P1

BRACKET

1шт.

5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

6

ZS18C06065

SCREW,Hex, M6 x 65mm

Cap

2шт.

7

ZW16H08000

WASHER

2шт.

8

HH35S04004G1

90 ELBOW

4шт.

9

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

11

HH25S06006G1

HYD CONNECTOR

2шт.

13

ZE72X04000

PLUG

1шт.

14

ZE72X06000

PLUG

3шт.

16

HH55L04004G2

TEE

1шт.

17

PW64H01011P1

TEE

1шт.

18

PH64H01057P1

CONNECTION

1шт.

20

HH25S04004G1

HYD CONNECTOR

1шт.

21

2444Z2525

HYD CONNECTOR

1шт.

23

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

25

HX33L03040DX

HOSE,4.8mm ID x 400mm L

1шт.

26

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

27

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

28

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

30

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

32

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

33

ZC16X01800

CLIP

1шт.

34

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

2шт.

35

ZW16H10000

WASHER

2шт.

39

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

40

HH45S04004G1

45 ELBOW

1шт.

41

ZW16H06000

WASHER

2шт.

42

2444Z3326

HYD CONNECTOR

Connector

1шт.

43

HH55Q06006G1

TEE

1шт.

Выбрано товаров: 36
