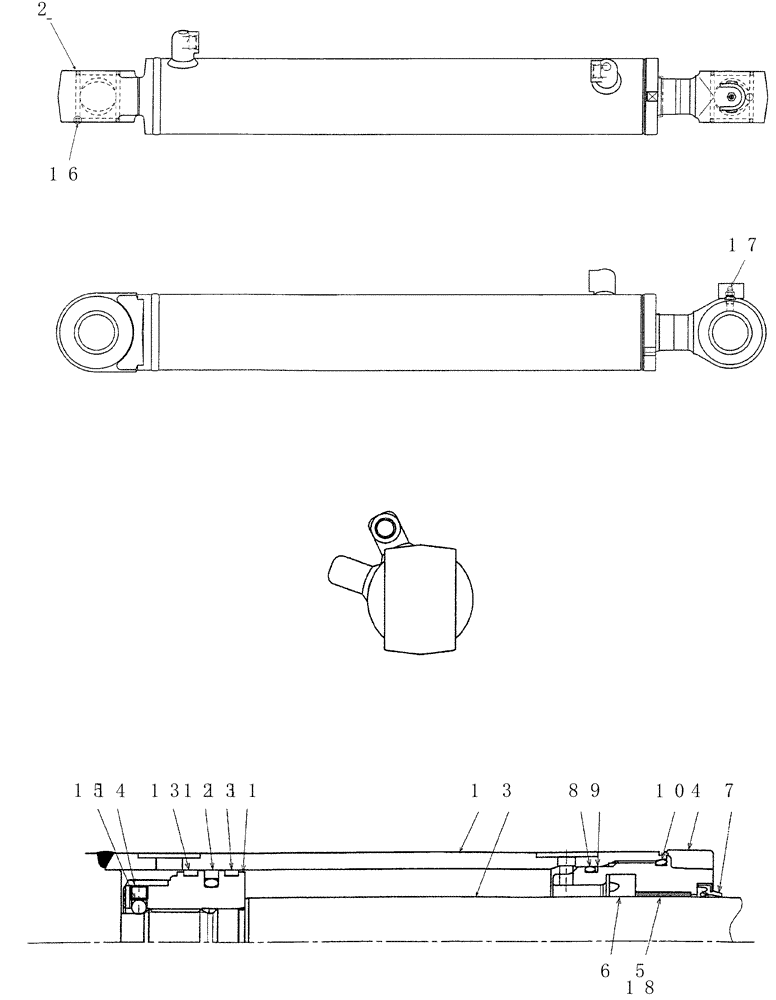

Запчасти Case CX31B (HC770-01) - CYLINDER ASSY, SWING (00) - GENERAL & PICTORIAL INDEX

PX01V00042F1

CYLINDER

Assy, Swing

1шт.

PX01V00042F2

HYDRAULIC CYLINDER,Double Acting, 45mm Rod, 488mm Stroke

Assy, Swing

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PX01V00042S002

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PX01V00042S004

CYLINDER HEAD

1шт.

5

2438U1169S4

BUSHING

(For F1 ONLY)

1шт.

6

2438U635S3

RING

U

1шт.

7

PH01V00006S006

RING

Ring

1шт.

8

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

9

PH01V00015S008

BACK-UP RING

1шт.

10

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

11

PX01V00042S011

PISTON

1шт.

12

2438U852S15

RING

Seal

1шт.

13

PH01V00015S017

RING

Slide

2шт.

14

2438U1057S16

SET SCREW

Setscrew

1шт.

15

2436U946S11

BALL

1шт.

16

PR01V00002S027

SEAL

Dust

4шт.

17

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.

18

PV01V00047S019

BUSHING

(For F2 ONLY)

1шт.

k

PX01V00042R100

TUBE

Repair Kit Consists Of Item 1x1, 2x1, 16x2

1шт.

k

PX01V00042R200

ROD

Repair Kit Consists Of Item 2x1, 3x1, 16x2

1шт.

k

PX01V00042R300

SEAL

Consists Of Item 6x1, 7x1, 8x1, 9x1

1шт.
