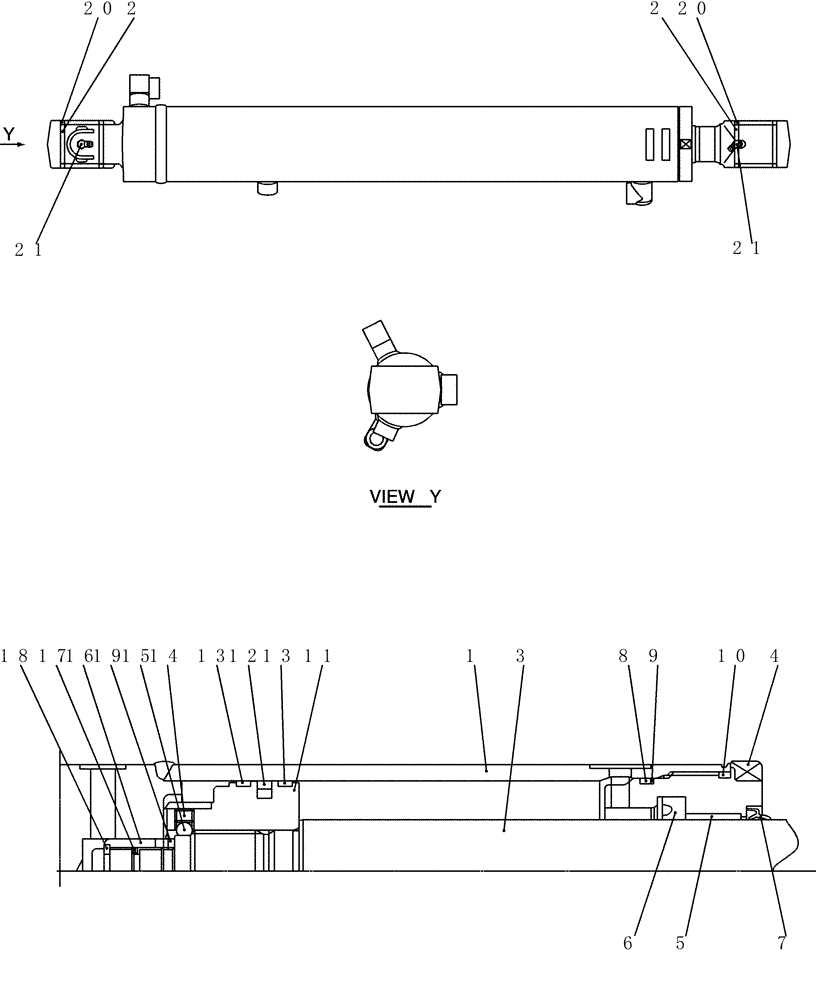

Запчасти Case CX31B (HC650-01[1]) - CYLINDER ASSY, ARM (00) - GENERAL & PICTORIAL INDEX

PW01V00070F1

CYLINDER

Assy, Arm

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PW01V01086D1

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PW01V00068S004

CYLINDER END CAP

Head

1шт.

5

PV01V00047S019

BUSHING

1шт.

6

2438U635S3

RING

U

1шт.

7

PH01V00006S006

RING

Ring

1шт.

8

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

9

PH01V00015S008

BACK-UP RING

1шт.

10

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

11

PX01V00042S011

PISTON

1шт.

12

2438U852S15

RING

Seal

1шт.

13

PW01V00068S018

RING

Ring, Slide

2шт.

14

2438U1057S16

SET SCREW

Setscrew

1шт.

15

2436U946S11

BALL

1шт.

16

PX01V00048S016

CUSHION

Bearing

1шт.

17

YT01V00002S023

SEAL

1шт.

18

2438U1116S24

STOP

2шт.

19

2438U1116S23

RING

Retaining

1шт.

20

PR01V00002S027

SEAL

Dust

4шт.

21

ZG91U02000

LUBE NIPPLE

Grease

2шт.

k

PX01V00063R100

REPAIR KIT

Consists Of Item 1x1, 2x1, 20x2

1шт.

k

PX01V00048R200

ROD

Repair Kit Consists Of Item 2x1, 3x1, 20x2

1шт.

k

PX01V00042R300

SEAL

Consists Of Item 6x1, 7x1, 8x1, 9x1

1шт.
