Артикул
Название
Примечание
Количество
PW01V00069F1

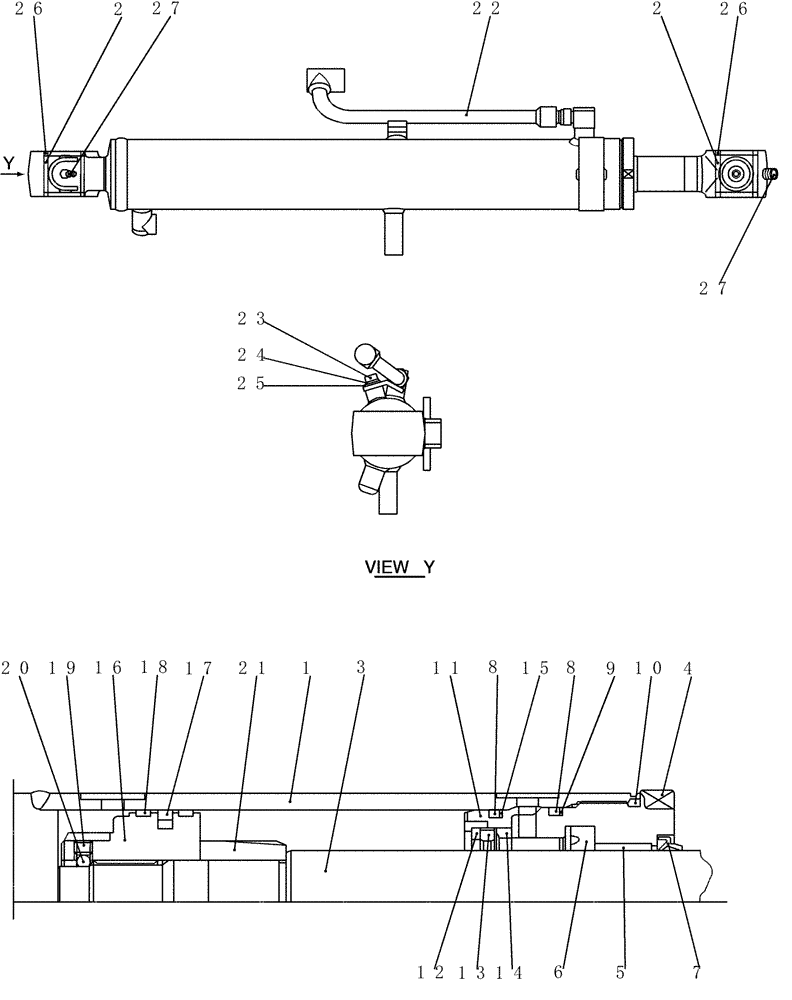

CYLINDER,Double Acting, 45mm Rod, 540mm Stroke
Assy, Boom
1шт.
1
NSS
NOT SOLD SEPARAT
Tube, Cylinder
1шт.
2
PW01V01086D1
BUSHING
2шт.
3
NSS
NOT SOLD SEPARAT
Rod, Piston
1шт.
4
PW01V00068S004
CYLINDER END CAP
Head
1шт.
5
PV01V00047S019
BUSHING
1шт.
6
2438U635S3
RING
U
1шт.
7
PH01V00006S006
RING
Ring
1шт.
8
ZD12G07500
O-RING,74.40mm ID x 80.60mm OD x 3.10mm
2шт.
9
PH01V00015S008
BACK-UP RING
1шт.
11
PX01V00045S011
HOLDER
1шт.
12
PH01V00015S024
CAP
Spacer
1шт.
13
PH01V00015S011
SEAL
1шт.
14
PW01V00068S014
COLLAR
Collar
1шт.
15
PW01V00014S008
BACK-UP RING
1шт.
16
PX01V00045S017
PISTON
1шт.
17
2438U852S15
RING
Seal
1шт.
18
PW01V00068S018
RING
Ring, Slide
2шт.
19
2438U1057S16
SET SCREW
Setscrew
1шт.
20
2436U946S11
BALL
1шт.
21
PX01V00045S022
CUSHION
Bearing
1шт.
22
PX01V00053S022
TUBE ASSY.
1шт.
23
PM01V00060S025
CAPSCREW
Cap
1шт.
24
ZW22K10000
LOCK WASHER
Lock
1шт.
25
PR01V00002S024
WASHER
1шт.
26
PR01V00002S027
SEAL
Dust
4шт.
27
ZG91V02000
LUBE NIPPLE,67 Degree x 1/8" PT
Grease
2шт.
k
PX01V00065R100
SERVICE KIT
Repair Kit Consists Of Item 1x1, 2x1, 26x2
1шт.
k
PX01V00052R400
REPAIR KIT
Consists Of Item 2x1, 3x1, 26x2
1шт.
k
PX01V00045R300
REPAIR KIT
Consists Of Item 6x1, 7x1, 8x2, 9x1
1шт.
Выбрано товаров: 31
