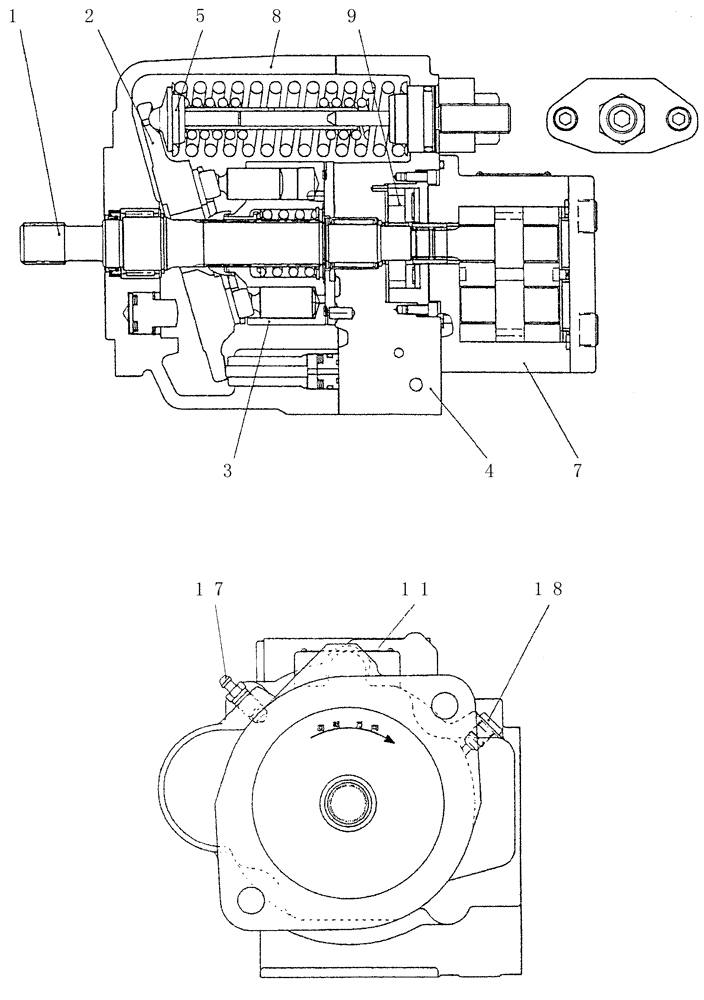

Запчасти Case CX31B (HC450-01) - PUMP ASSY (00) - GENERAL & PICTORIAL INDEX

PX10V00012F1

HYDRAULIC PUMP

Pump

1шт.

1

PX10V01004F1

SHAFT ASSY.

(See HC401)

1шт.

2

PX10V01005F1

BLOCK ASSY.

(See HC402)

1шт.

3

PX10V01006F1

ROTATOR

(See HC403)

1шт.

4

PX10V01007F1

COVER ASSY

(See HC404)

1шт.

5

PX10V01008F1

SPRING

Assy (See HC405)

1шт.

7

PX10V00014F1

PUMP

Assy, Gear (See HC410)

1шт.

8

PX10V01009F1

HOUSING

Housing (See HC455)

1шт.

9

PX10V00015F1

PUMP

Assy (See HC407)

1шт.

11

PM10V00013S011

LABEL

Name Plate

1шт.

17

PY10V00007S017

BREATHER

Breezer, Air

1шт.

18

2441U720S49

PLUG

1шт.
