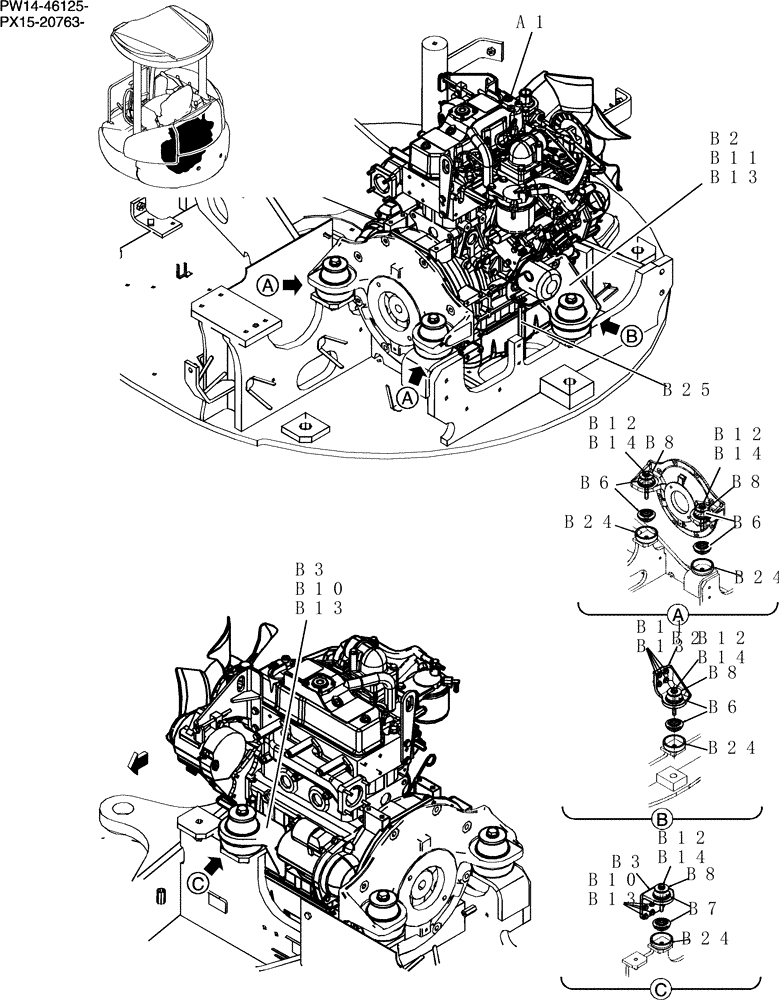

Запчасти Case CX31B (025-01-A[1]) - ENGINE INSTAL (00) - GENERAL & PICTORIAL INDEX
![Схема запчастей Case CX31B - (025-01-A[1]) - ENGINE INSTAL (00) - GENERAL & PICTORIAL INDEX](https://partsell.ru/storage/images/casece/415670.png)
b11
b24
b12
b6
b13
b14
b10
b8
b2
b11
a1
b12
b13
b8
b7
b24
b12
b12
b6
b8
b14
b14
b10
b14
b3
b3
b25
b6
b8
b13
b13
b2
b24
b24
PW02P000251
Engine
1шт.
PW02P00025F1
1шт.
a1
PW02P00018F1
ENGINE
(See Fig No. 020-01-1)
1шт.
PW02P00026F1
Engine
1шт.
b2
PW02P01055P1
BRACKET
1шт.
b3
PW02P01056P1
BRACKET
1шт.
b6
PW02P01054D1
RUBBER MOUNTING
6шт.
b7
PW02P01054D2
RUBBER MOUNTING
2шт.
b8
PW01P01022P1
WASHER
4шт.
b10
ZS18C10025
SCREW,Hex, M10 x 25mm
4шт.
b11
ZS18C10030
SCREW,Hex, M10 x 30mm
Cap
4шт.
b12
ZS18C12120
SCREW,Hex, M12 x 120mm
Cap
4шт.
b13
ZW16H10000
WASHER
8шт.
b14
ZW16H12000
WASHER
4шт.
b24
PW02P01041P1
COVER
4шт.
b25
PW02P01047D1
HOSE,12mm ID x 250mm L
1шт.
