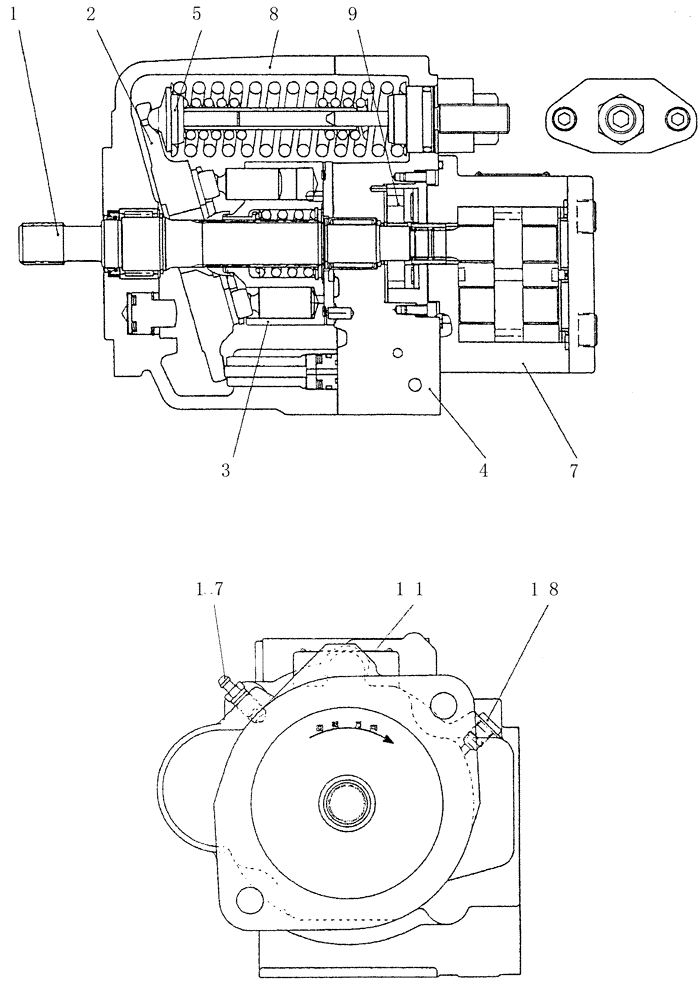

Запчасти Case CX31B (HC400-01) - PUMP ASSY (00) - GENERAL & PICTORIAL INDEX

PX10V00013F1

HYDRAULIC PUMP

1шт.

1

PX10V01004F1

SHAFT ASSY.

[ See(HC401) ]

1шт.

2

PX10V01005F1

BLOCK ASSY.

[ See(HC402) ]

1шт.

3

PX10V01006F1

ROTATOR

Assy [ See(HC403) ]

1шт.

4

PX10V01007F1

COVER ASSY

[ See(HC404) ]

1шт.

5

PX10V01008F1

SPRING

Assy [ See(HC405) ]

1шт.

7

PX10V00014F1

PUMP

Assy, Gear [ See(HC410) ]

1шт.

8

PX10V01010F1

TRANSMISSION HOUSING

Assy [ See(HC408) ]

1шт.

9

PX10V00015F1

PUMP

Assy [ See(HC407) ]

1шт.

11

PY10V00009S011

IDENTITY PLATE

1шт.

17

PY10V00007S017

BREATHER

1шт.

18

2441U720S49

PLUG

1шт.
