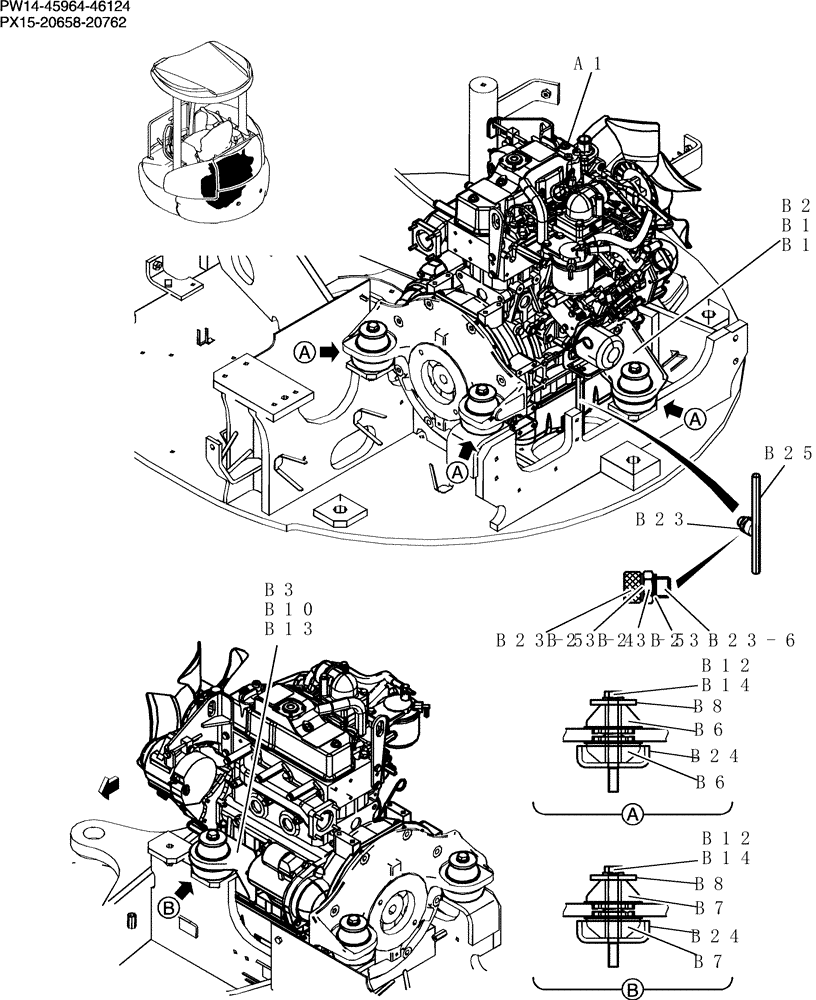

Запчасти Case CX31B (025-01[1]) - ENGINE INSTAL (00) - GENERAL & PICTORIAL INDEX

PW02P00019F1

1шт.

a1

PW02P00018F1

ENGINE

1шт.

p. 020

1шт.

PW02P00020F1

1шт.

b2

PW02P01055P1

BRACKET

1шт.

b3

PW02P01056P1

BRACKET

1шт.

b6

PW02P01054D1

RUBBER MOUNTING

6шт.

b7

PW02P01054D2

RUBBER MOUNTING

2шт.

b8

PW01P01022P1

WASHER

4шт.

b10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

b11

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

4шт.

b12

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

b13

ZW16H10000

WASHER

8шт.

b14

ZW16H12000

WASHER

4шт.

b23

PW02P01057F1

PLUG,M22 x 1.5

1шт.

b23-2

LQ02PU1002S002

WASHER

1шт.

b23-3

LQ02PU1002S003

BODY

1шт.

b23-4

LQ02PU1002S004

O-RING

1шт.

b23-5

LQ02PU1002S005

CAP

1шт.

b23-6

LQ02PU1002S006

PLUG

1шт.

b24

PW02P01041P1

COVER

4шт.

b25

PU01P01035P1

HOSE

Hose Assy with Straight Coupler

1шт.

b25

PM91Z01005P1

HOSE

Hose Assy with Elbow Coupler

1шт.

b25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.
