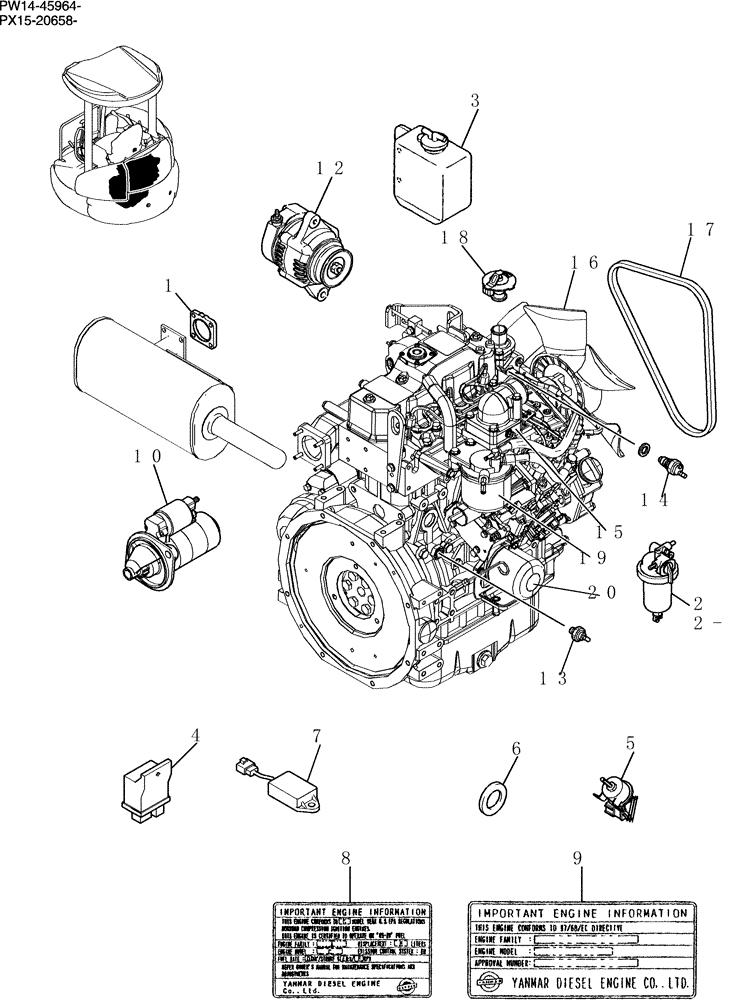

Запчасти Case CX31B (020-01[1]) - ENGINE ASSEMBLY (00) - GENERAL & PICTORIAL INDEX

PW02P00018F1

ENGINE

1шт.

1

PW12P01043P1

GASKET

1шт.

2

PW02P01046P1

SEPARATOR

Water

1шт.

3

PU01P01024F1

RESERVOIR

Tank ,Water,Sub

1шт.

4

PX24S00001P1

RELAY

1шт.

5

PW22P00001P1

FUEL PUMP

1шт.

6

PA13E01027P1

PACKING

1шт.

7

PH25S00002P1

TIMER

1шт.

8

PY20T01087P1

LABEL

1шт.

9

PX20T01008P1

DECAL

1шт.

1

VV12900413200

GASKET

1шт.

2

VV11980255700

SEPARATOR

Water

1шт.

2-12

VV11980255710

FILTER STRAINER

Element,Water Separator

1шт.

3

VV12146844510

TANK

Water,Sub

1шт.

4

VV11980277200

RELAY

1шт.

5

VV12961252100

FUEL PUMP,12V, 1.5A

1шт.

6

VV12915049360

PACKING

1шт.

7

VV12921177920

TIMER

1шт.

10

VV12924277010

STARTER MOTOR

1шт.

12

VV11962677210

ALTERNATOR,12V, 55 Amp

Dynamo

1шт.

13

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

oil

1шт.

14

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

Thermo

1шт.

15

VV12910077500

HEATER

Air

1шт.

16

VV17134044740

FAN

1шт.

17

VV12961242330

V-BELT

1шт.

18

VV12915549801

THERMOSTAT

1шт.

19

VV11980255801

FUEL FILTER

1шт.

20

VV12915035153

ENGINE OIL FILTER

Filter,Oil

1шт.
