(HC010-01) - VALVE ASSY, CONTROL (TRAVEL LEFT)

Запчасти Case CX31B (HC010-01) - VALVE ASSY, CONTROL (TRAVEL LEFT) (00) - GENERAL & PICTORIAL INDEX

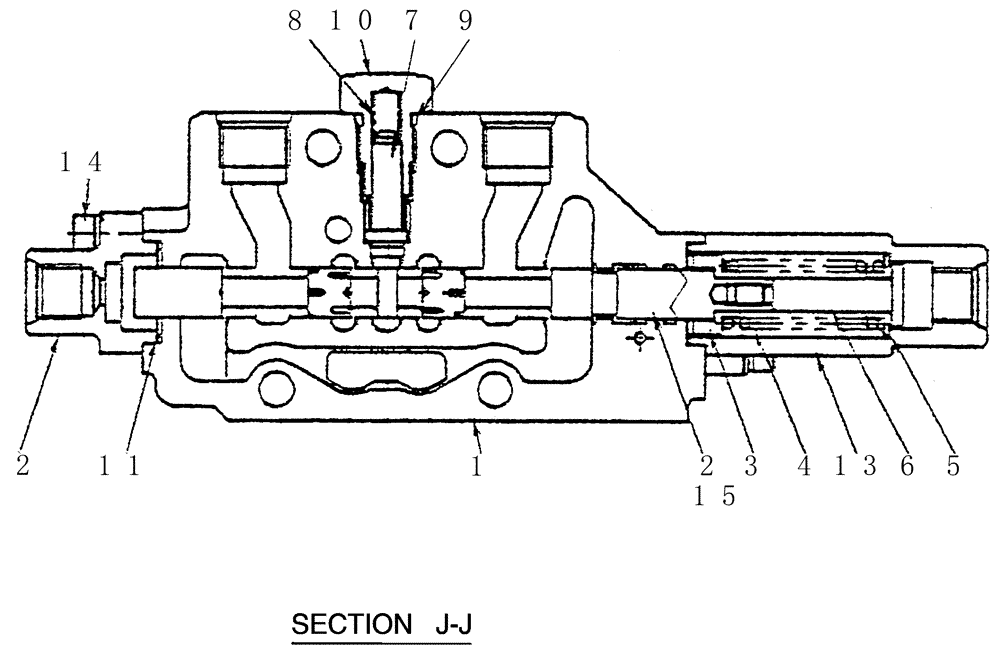

Схема запчастей Case CX31B - (HC010-01) - VALVE ASSY, CONTROL (TRAVEL LEFT) (00) - GENERAL & PICTORIAL INDEX
8
12
9
14
3
4
13
10
1
7
11
6
5
15
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX30V00056F1

VALVE SECTION

Assy, Control

1шт.

PX30V00056F2

VALVE SECTION

Assy

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool (For F1 ONLY)

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

PW30V01009S002

POPPET

1шт.

8

PH30V00014S013

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PW30V01009S005

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

Cap

4шт.

15

NSS

NOT SOLD SEPARAT

Spool (For F2 ONLY)

1шт.

k

PX30V00054R100

REPAIR KIT

Consists Of Item 2x1, 3x1, 4x1, 5x1, (For F1 ONLY)

1шт.

k

PX30V00054R200

REPAIR KIT

Repair Kit Consists Of Item 3x1, 4x1, 5x1, 6x1, (For F2 ONLY)

1шт.
