(HC005-01) - VALVE ASSY, CONTROL (ARM)

Запчасти Case CX31B (HC005-01) - VALVE ASSY, CONTROL (ARM) (00) - GENERAL & PICTORIAL INDEX

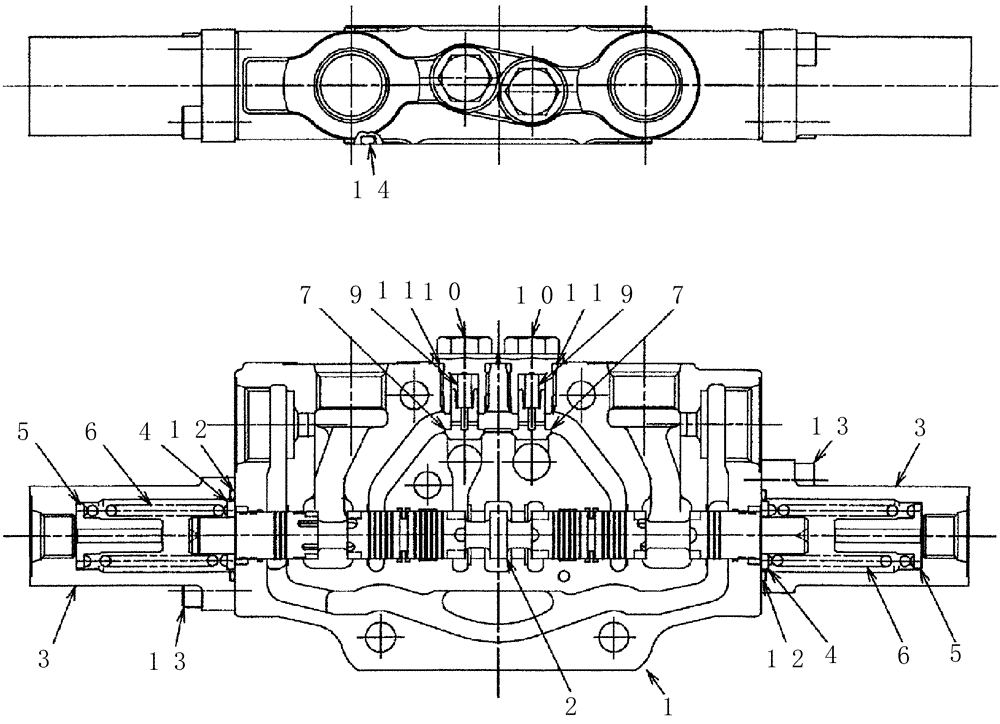

Схема запчастей Case CX31B - (HC005-01) - VALVE ASSY, CONTROL (ARM) (00) - GENERAL & PICTORIAL INDEX
5
7
9
11
10
7
12
5
12
14
3
3
4
13
1
2
6
11
13
10
6
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX30V00051F1

VALVE SECTION

Assy, Control

1шт.

PX30V00051F2

VALVE SECTION

Assy, Control

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool (For F1 ONLY)

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

Cap

4шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

Assy, Overload (See HC019)

2шт.

16

NSS

NOT SOLD SEPARAT

Spool (For F2 ONLY)

1шт.

k

PX30V00051R100

REPAIR KIT

Consists Of Item 2x1, 3x1, 4x1, 5x1, (For F1 ONLY)

1шт.

k

PX30V00051R200

REPAIR KIT

Repair Kit Consists Of Item 3x1, 4x1, 5x1, 6x1, (For F2 ONLY)

1шт.
