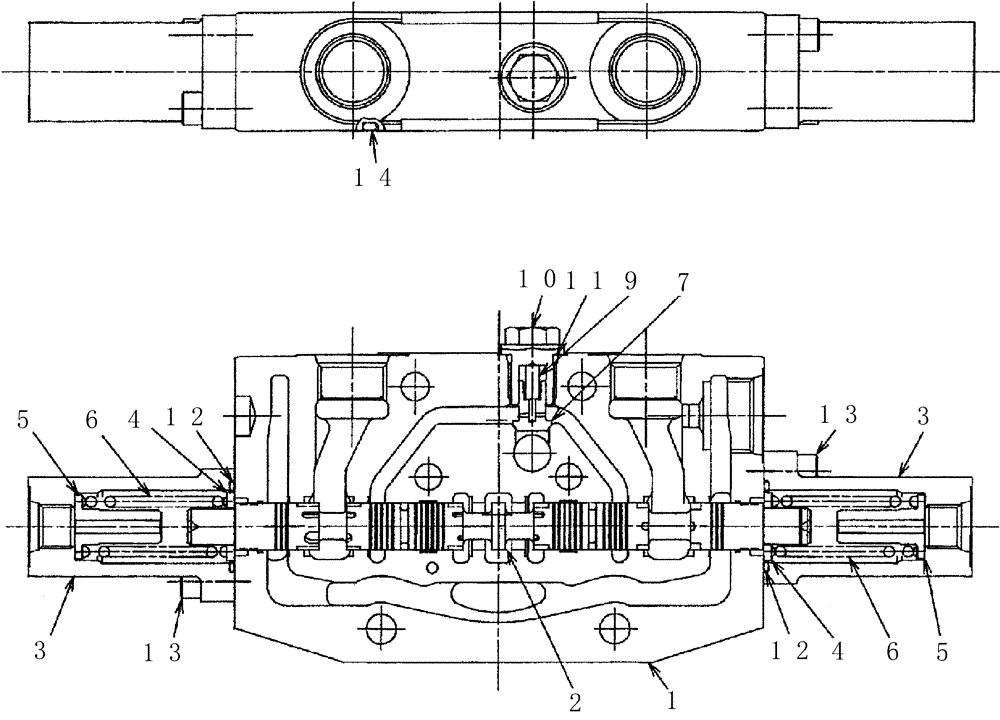

Запчасти Case CX31B (HC002-01) - VALVE ASSY, CONTROL (DOZER) (00) - GENERAL & PICTORIAL INDEX

PX30V00048F1

VALVE SECTION

Control, Dozer

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

Cap

4шт.

15

PM22V00005F3

VALVE PRESSURE RELIE

Assy, Overload (See HC019)

1шт.

SEE (HC019)

1шт.

k

PX30V00048R100

REPAIR KIT

Consists Of Item 2x1, 3x1, 4x1, 5x1

1шт.
