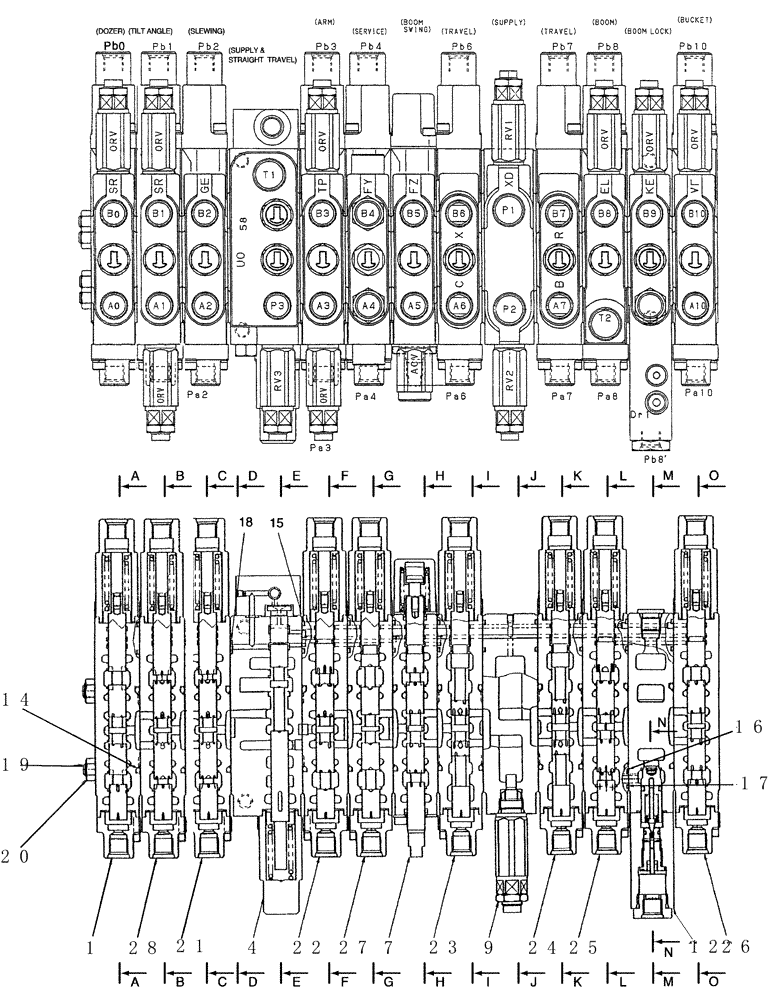

Запчасти Case CX31B (HC001-72) - VALVE ASSY, CONTROL (ANGLE DOZER) (00) - GENERAL & PICTORIAL INDEX

PX30V00072F3

CONTROL VALVE

Control

1шт.

PX30V00072F1

Valve , Control

1шт.

PX30V00072F2

VALVE

Control

1шт.

PX30V00072F3

CONTROL VALVE

Control

1шт.

1

PX30V00048F1

VALVE SECTION

Assy, Control (dozer) (See HC002)

1шт.

4

PX30V00050F1

VALVE SECTION

Assy, Control (supply & Straight (See HC004)

1шт.

7

PX30V00053F1

VALVE SECTION

Assy,(boom Swing) (See HC007)

1шт.

9

PX30V00055F1

VALVE SECTION

Assy, Control (supply) (See HC009)

1шт.

12

PW30V01026F1

VALVE SECTION

Assy, Control (boom Lock) (See HC012)

1шт.

14

PH30V00003S015

O-RING

12шт.

15

ZD11P01800

O-RING

10шт.

16

ZD12P01000

O-RING

1шт.

17

ZD12P00900

O-RING

1шт.

18

ZD11P00600

O-RING

1шт.

19

PW30V00017S022

BOLT

4шт.

20

ZN18C08007

NUT

4шт.

21

PX30V00049F3

VALVE SECTION

Assy, Control (slewing) (See HC003)

1шт.

22

PX30V00051F2

VALVE SECTION

Assy, Control (arm) (See HC005)

1шт.

23

PX30V00054F2

VALVE SECTION

Assy, Control (travel Right) (See HC008)

1шт.

24

PX30V00056F2

VALVE SECTION

Assy, (travel Left) (See HC010)

1шт.

25

PX30V00057F2

VALVE SECTION

Assy, (boom) (See HC011)

1шт.

26

PX30V00058F2

VALVE SECTION

Assy, (bucket) (See HC013)

1шт.

27

PX30V00052F2

VALVE SECTION

Valve , Control (service) (See HC006)

1шт.

28

PX30V00077F2

VALVE SECTION

Valve , Control (tilt Angle) (See HC002-72)

1шт.
