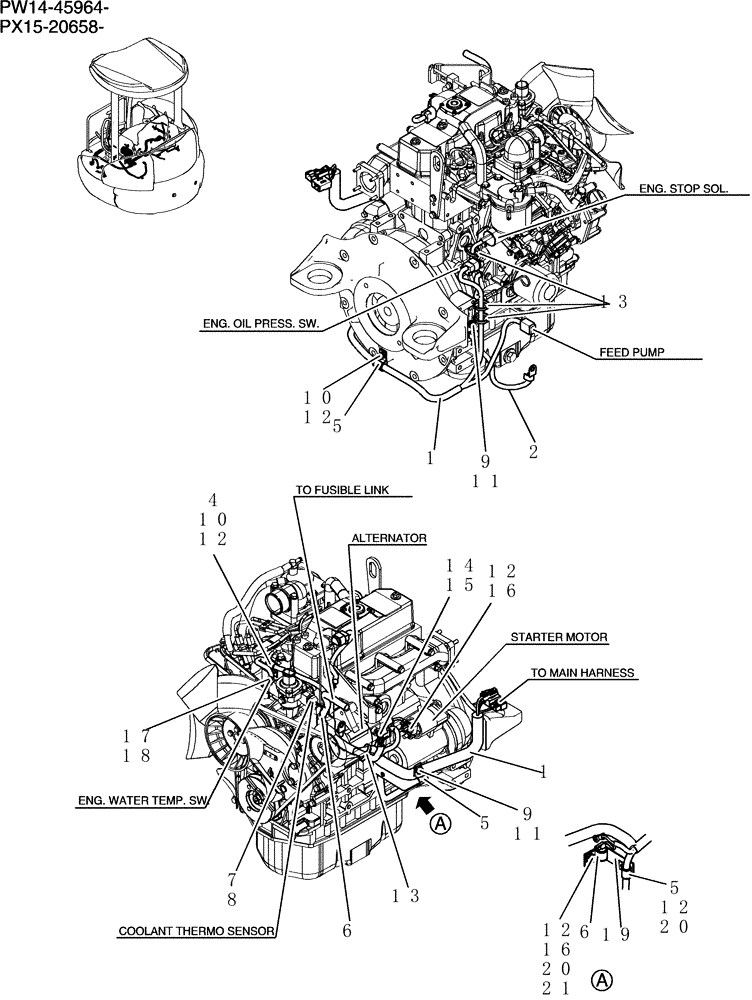

Запчасти Case CX31B (325-01[1]) - HARNESS ASSEMBLY, ENGINE (00) - GENERAL & PICTORIAL INDEX

PW16E00005F1

Harness , Engine

1шт.

1

PW16E01018P4

HARNESS

Harness

1шт.

2

PH13E01047D1

CABLE

1шт.

4

EW02E01015D4

CLIP

1шт.

5

EW02E01015D6

CLIP

3шт.

6

EW02E01015D8

CLIP

2шт.

7

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

8

PA13E01027P1

PACKING

1шт.

9

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

10

ZS18C08012

SCREW,Hex, M8 x 12mm

Cap

2шт.

11

ZW16X10000

WASHER

2шт.

12

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

5шт.

13

PY01P01043D4

CABLE TIE,4.80mm W x 251mm L

4шт.

14

ZW16X06000

WASHER

1шт.

15

ZN18C06005

NUT

1шт.

16

ZN18C08007

NUT

2шт.

17

PM50S00006P1

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

(Used for Engine Coolent Temp Warning)

1шт.

18

PM16E01011P1

O-RING

1шт.

19

PM16E01023P1

PLATE

1шт.

20

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

2шт.

21

ZW26X08000

LOCK WASHER

1шт.
