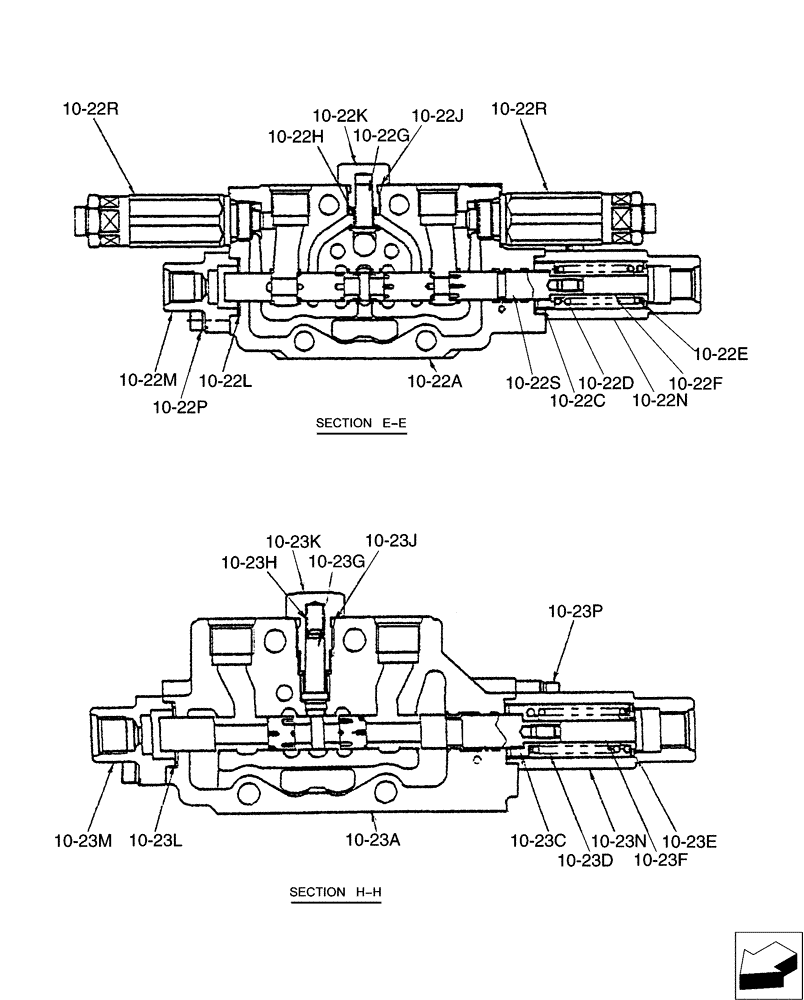

Запчасти Case CX31B (01-029[08]) - VALVE INSTAL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PW64H00081F1

Instal (Angle Dozer)

1шт.

1

PW64H01064P1

BRACKET

1шт.

2

ZS18C10050

SCREW,Hex, M10 x 50mm

Cap

4шт.

3

ZW16H10000

WASHER

4шт.

4

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

3шт.

5

ZW26X10000

LOCK WASHER

4шт.

6

2418T21137

WASHER

4шт.

7

PW64H01062P1

RUBBER

4шт.

8

2416Z649

CUSHION

Rubber

4шт.

9

2418T17903D9

SPACER

4шт.

10

PX30V00072F3

CONTROL VALVE

Control

1шт.

10-1

PX30V00048F1

VALVE SECTION

Control

1шт.

10-12b

ZD12P01100

O-RING

2шт.

10-12c

2436U1317S13

PLUG

1шт.

10-12d

PW30V01009S002

POPPET

1шт.

10-12e

PH30V00014S013

SPRING

1шт.

10-12f

PW30V01009S005

PLUG

1шт.

10-12g

2436R612S5

O-RING

1шт.

10-12h

PW30V01011S015

PLUG

1шт.

10-12j

ZD11P00600

O-RING

1шт.

10-12k

PB30V00006S010

O-RING

1шт.

10-12l

PR30V00007S014

PLUG

1шт.

10-12m

ZD12P01400

O-RING

1шт.

10-12n

PM22V00005F4

VALVE PRESSURE RELIE

1шт.

10-22a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-22c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-22d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-22e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-22f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-22g

PH30V00003S006

POPPET

1шт.

10-22h

PH30V00003S007

SPRING

1шт.

10-22j

ZD12P01100

O-RING

1шт.

10-22k

PH30V00003S009

PLUG

1шт.

10-22l

PW30V01008S011

O-RING

2шт.

10-22m

PM30V00021S012

COVER

1шт.

10-22n

PM30V00021S013

COVER

1шт.

10-22p

PM30V00021S014

SCREW

Cap

4шт.

10-22r

PM22V00005F3

VALVE PRESSURE RELIE

2шт.

10-22s

NSS

NOT SOLD SEPARAT

Spool

1шт.

10-23a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-23c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-23d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-23e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-23f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-23g

PW30V01009S002

POPPET

1шт.

10-23h

PH30V00014S013

SPRING

1шт.

10-23j

ZD12P01100

O-RING

1шт.

10-23k

PW30V01009S005

PLUG

1шт.

10-23l

PW30V01008S011

O-RING

2шт.

10-23m

PM30V00021S012

COVER

1шт.

10-23n

PM30V00021S013

COVER

1шт.

10-23p

PM30V00021S014

SCREW

Cap

4шт.

10-23r

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00051R200

REPAIR KIT

Repair Kit, Consists Of Ref: 10-22C(1), 10-22D(1), 10-22E(1), 10-22F(1), 10-22S(1)

1шт.

PX30V00054R200

REPAIR KIT

Repair Kit, Consists Of Ref: 10-23C(1), 10-23D(1), 10-23E(1), 10-23F(1), 10-23R(1)

1шт.
