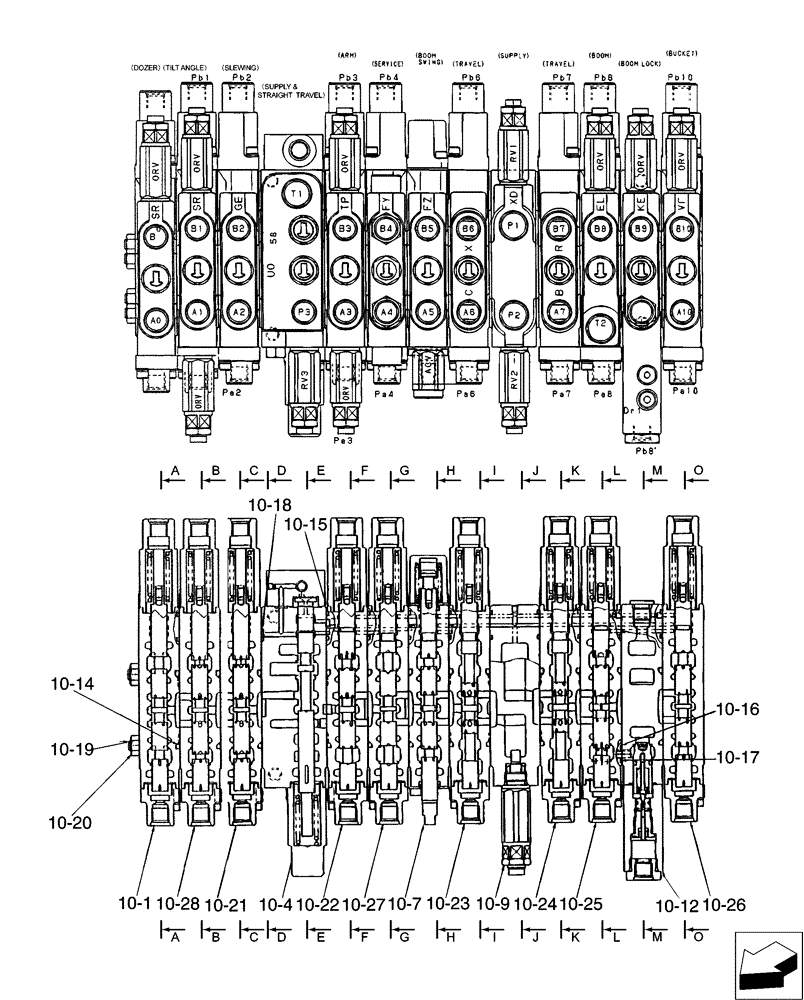

Запчасти Case CX31B (01-029[02]) - VALVE INSTAL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX31B - (01-029[02]) - VALVE INSTAL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/399032.png)
10-20
10-28
10-9
10-22
10-16
10-27
10-19
10-24
10-7
10-12
10-1
10-4
10-25
10-21
10-14
10-26
10-23
10-17
10-1
PX30V00048F1
VALVE SECTION
Control
1шт.
10-4
PX30V00050F1
VALVE SECTION
Control
1шт.
10-7
PX30V00053F1
VALVE SECTION
1шт.
10-9
PX30V00055F1
VALVE SECTION
Control
1шт.
10-12
PW30V01026F1
VALVE SECTION
Control
1шт.
10-14
PH30V00003S015
O-RING
11шт.
10-15
ZD11P01800
O-RING
10шт.
10-16
ZD12P01000
O-RING
1шт.
10-17
ZD12P00900
O-RING
1шт.
10-18
ZD11P00600
O-RING
1шт.
10-19
PW30V00017S022
BOLT
4шт.
10-20
ZN18C08007
NUT
4шт.
10-21
PX30V00049F3
VALVE SECTION
Control
1шт.
10-22
PX30V00051F2
VALVE SECTION
Control
1шт.
10-23
PX30V00054F2
VALVE SECTION
Control
1шт.
10-24
PX30V00056F2
VALVE SECTION
1шт.
10-25
PX30V00057F2
VALVE SECTION
1шт.
10-26
PX30V00058F2
VALVE SECTION
1шт.
10-27
PX30V00052F2
VALVE SECTION
Control
1шт.
10-28
PX30V00077F2
VALVE SECTION
Control
1шт.
