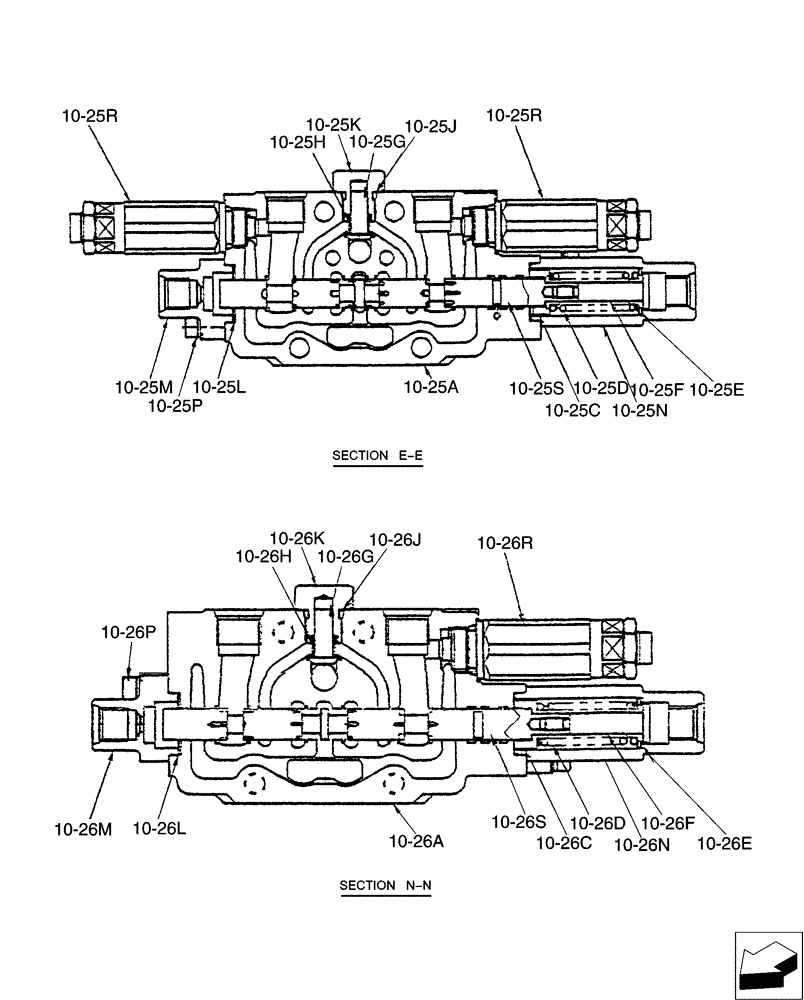

Запчасти Case CX31B (01-028[10]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

10-25a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-25c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-25d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-25e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-25f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-25g

PH30V00003S006

POPPET

1шт.

10-25h

PH30V00003S007

SPRING

1шт.

10-25j

ZD12P01100

O-RING

1шт.

10-25k

PH30V00003S009

PLUG

1шт.

10-25l

PW30V01008S011

O-RING

2шт.

10-25m

PM30V00021S012

COVER

1шт.

10-25n

PM30V00021S013

COVER

1шт.

10-25p

PM30V00021S014

SCREW

Cap

4шт.

10-25r

PM22V00005F3

VALVE PRESSURE RELIE

2шт.

10-25s

NSS

NOT SOLD SEPARAT

Spool

1шт.

10-26a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-26c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-26d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-26e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-26f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-26g

PH30V00003S006

POPPET

1шт.

10-26h

PH30V00003S007

SPRING

1шт.

10-26j

ZD12P01100

O-RING

1шт.

10-26k

PH30V00003S009

PLUG

1шт.

10-26l

PW30V01008S011

O-RING

2шт.

10-26m

PM30V00021S012

COVER

1шт.

10-26n

PM30V00021S013

COVER

1шт.

10-26p

PM30V00021S014

SCREW

Cap

4шт.

10-26r

PM22V00005F3

VALVE PRESSURE RELIE

1шт.

10-26s

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00051R200

REPAIR KIT

Repair Kit, Consists Of Ref: 10-25C(1), 10-25D(1), 10-25E(1), 10-25F(1), 10-25S(1)

1шт.

PX30V00058R200

REPAIR KIT

Consists Of Ref: 10-26C(1), 10-26D(1), 10-26E(1), 10-26F(1), 10-26S(1)

1шт.
