Запчасти Case CX31B (01-028[08]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

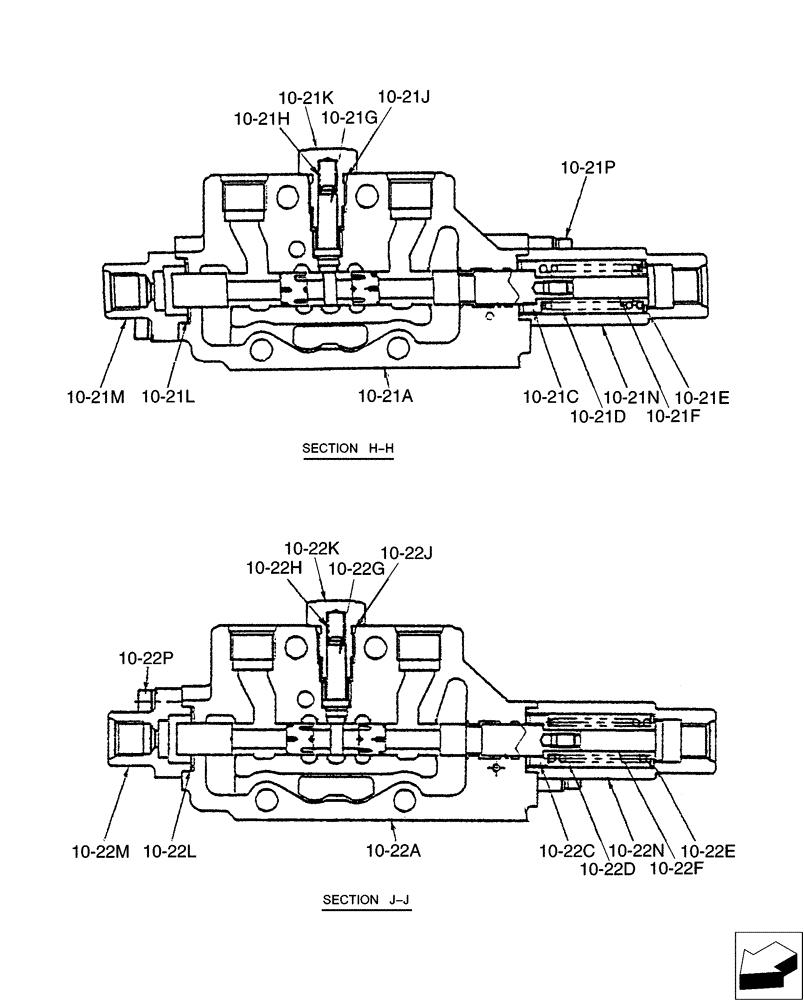

Схема запчастей Case CX31B - (01-028[08]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS
10-21p
10-22h
10-22n
10-22l
10-22j
10-21l
10-21h
10-21n
10-22e
10-22a
10-22m
10-22f
10-22c
10-21d
10-22g
10-21m
10-21j
10-21g
10-22k
10-21c
10-21k
10-22d
10-21e
10-21a
10-22p
10-21f
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10-21a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-21c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-21d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-21e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-21f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-21g

PW30V01009S002

POPPET

1шт.

10-21h

PH30V00014S013

SPRING

1шт.

10-21j

ZD12P01100

O-RING

1шт.

10-21k

PW30V01009S005

PLUG

1шт.

10-21l

PW30V01008S011

O-RING

2шт.

10-21m

PM30V00021S012

COVER

1шт.

10-21n

PM30V00021S013

COVER

1шт.

10-21p

PM30V00021S014

SCREW

Cap

4шт.

10-21r

NSS

NOT SOLD SEPARAT

Spool

1шт.

10-22a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-22c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-22d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-22e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-22f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-22g

PW30V01009S002

POPPET

1шт.

10-22h

PH30V00014S013

SPRING

1шт.

10-22j

ZD12P01100

O-RING

1шт.

10-22k

PW30V01009S005

PLUG

1шт.

10-22l

PW30V01008S011

O-RING

2шт.

10-22m

PM30V00021S012

COVER

1шт.

10-22n

PM30V00021S013

COVER

1шт.

10-22p

PM30V00021S014

SCREW

Cap

4шт.

10-22r

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00054R200

REPAIR KIT

Repair Kit, Consists Of Ref: 10-21C(1), 10-21D(1), 10-21E(1), 10-21F(1), 10-21R(1)

1шт.

PX30V00054R200

REPAIR KIT

Repair Kit, Consists Of Ref: 10-22C(1), 10-22D(1), 10-22E(1), 10-22F(1),10-22R(1)

1шт.
