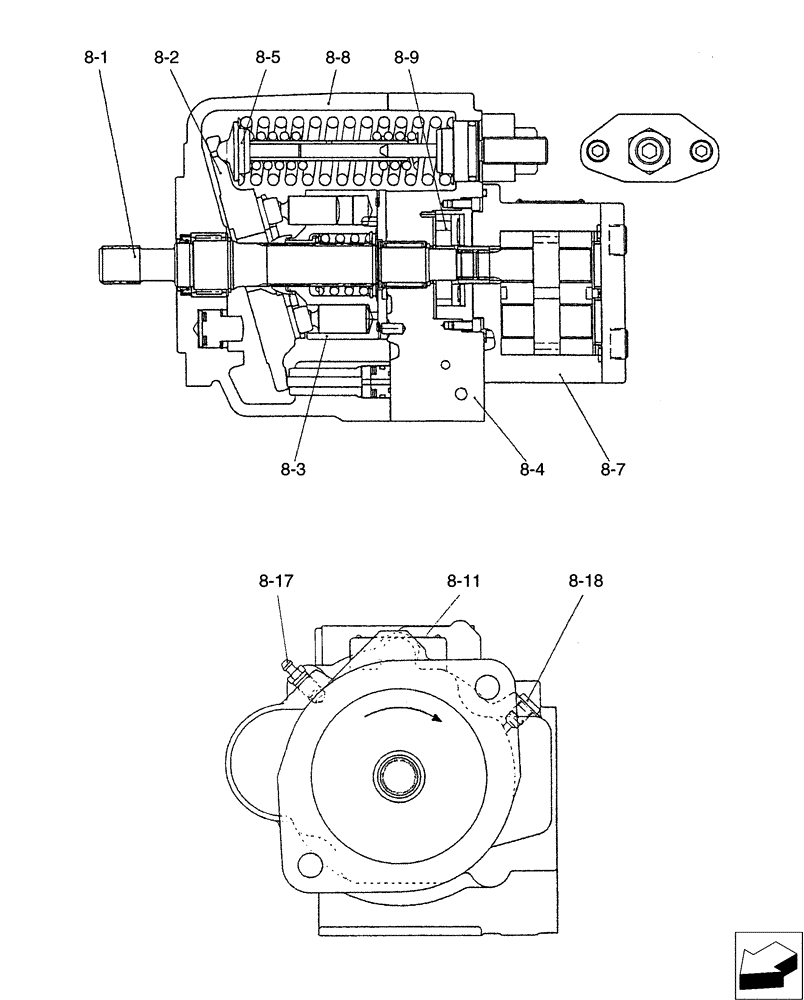

Запчасти Case CX31B (01-025[02]) - POWER TAKE-OFF ASSY (35) - HYDRAULIC SYSTEMS

8-1

PX10V01004F1

SHAFT ASSY.

1шт.

8-2

PX10V01005F1

BLOCK ASSY.

Plate

1шт.

8-3

PX10V01006F1

ROTATOR

Piston Assy.

1шт.

8-4

PX10V01007F1

COVER ASSY

1шт.

8-5

PX10V01008F1

SPRING

1шт.

8-7

PX10V00014F1

PUMP

Gear

1шт.

8-8

PX10V01010F1

TRANSMISSION HOUSING

1шт.

8-9

PX10V00015F1

PUMP

Hyd.

1шт.

8-11

PY10V00009S011

IDENTITY PLATE

1шт.

8-17

PY10V00007S017

BREATHER

1шт.

8-18

2441U720S49

PLUG

1шт.
