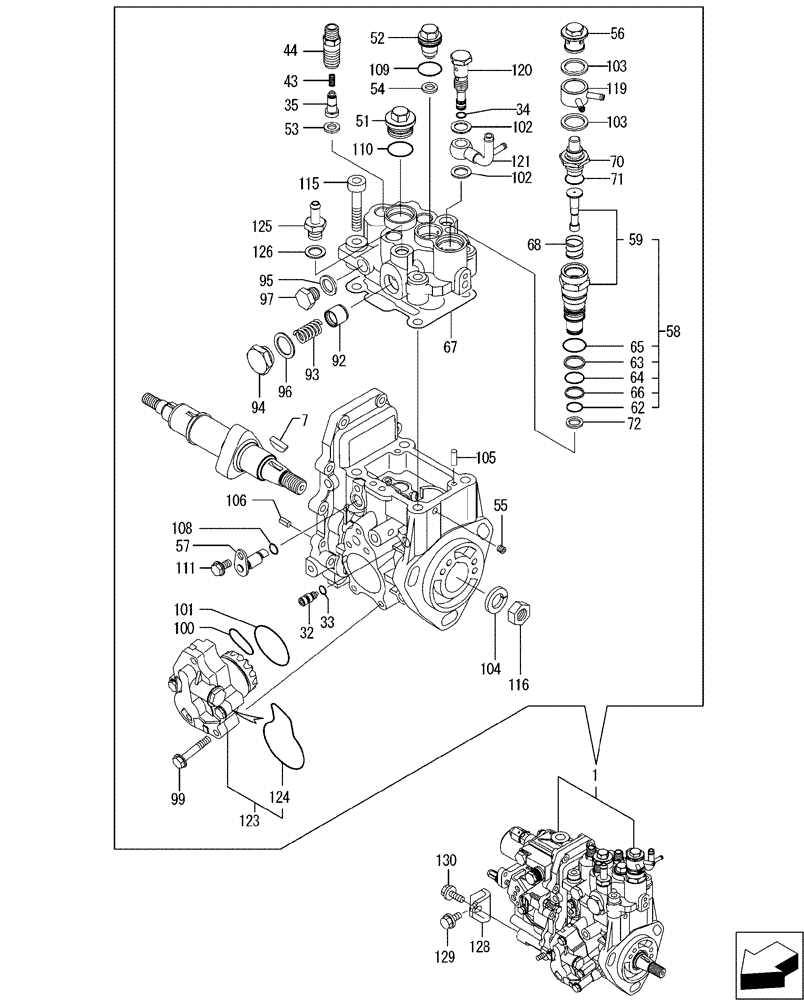

Запчасти Case CX31B (08-011[00]) - FUEL INJECTION PUMP (10) - ENGINE

1

VV72923651320

PUMP

Injection Assy., Includes Ref. 7 - 126

1шт.

Governor Assy (Fig. No. 3TNV88-BPYB-12) is Incorporated in this Fuel Injection Pump Assy.

1шт.

7

VV11980251090

WOODRUFF KEY,M4 x 16mm

4 x 16

1шт.

32

VV15860051270

STOP

1шт.

33

VV15856351281

O-RING

1шт.

34

VV15856351281

O-RING

1шт.

35

VV12900851300

VALVE

Delivery

3шт.

43

VV15856351330

SPRING

3шт.

44

VV12900851340

HOLDER

Delivery

3шт.

51

VV15860151550

PLUG

1шт.

52

VV11980251560

PLUG

Barrel

1шт.

53

VV15855251570

SEAL

PK (Barrel Plug)

3шт.

54

VV15855251570

SEAL

PK (Barrel Plug)

1шт.

55

VV15855751570

PLUG

1шт.

56

VV15860151570

PLUG

Water Pump

1шт.

57

VV15855251580

LEVER & PIN ASSY

Lifter

1шт.

58

VV11980251590

TIMER

Set, Includes Ref. 59 - 66

1шт.

59

VV11980251600

TIMER

Cmp

1шт.

62

VV15855351670

O-RING

1011

1шт.

63

VV11980251680

BACK-UP RING

1шт.

64

VV11980251690

O-RING

1шт.

65

VV24356010200

O-RING

Packing, 1020

1шт.

66

VV24372000150

BACK-UP RING

T2 P 15

1шт.

67

VV15855251600

SEAL

Packing, Head

1шт.

68

VV15855351630

SPRING

Timer

1шт.

70

VV15855351640

ELEMENT

Thermo

1шт.

71

VV15855351660

O-RING

P14

1шт.

72

VV15855351680

SEAL

Timer

1шт.

92

VV15860151770

PISTON

1шт.

93

VV15855251781

SPRING

1шт.

94

VV15860151790

PLUG

1шт.

95

VV22190120002

SEAL

12

1шт.

96

VV22190180002

SEAL

18

1шт.

97

VV23887120002

PLUG

M12, Hex.

1шт.

99

VV15855351770

SCREW

4шт.

100

VV15855252310

O-RING

1шт.

101

VV15855252400

O-RING

4E S42

1шт.

102

VV22190120002

SEAL

12

2шт.

103

VV22190180002

SEAL

18

2шт.

104

VV22217140000

SPRING WASHER

14

1шт.

105

VV22312050140

PARALLEL PIN,M5 x 14mm

5 x 14

2шт.

106

VV22351050010

SPRING,5 x 10mm

Pin 5 x 10

2шт.

108

VV24311000070

O-RING

1A P-7.0

1шт.

109

VV24356010180

O-RING

1шт.

110

VV24356010200

O-RING

Packing, 1020

1шт.

111

VV26106060102

BOLT,M6 x 10mm

6 x 10 Plated

1шт.

115

VV26450080452

SCREW,M8 x 45mm

M8 x 45

4шт.

116

VV26776140002

LOCK NUT,M14

M14 Plated

1шт.

119

VV15855351551

BANJO FITTING

Joint, Cooling Water

1шт.

120

VV15860151650

BANJO FITTING

Joint

1шт.

121

VV15855251670

BANJO FITTING

Joint

1шт.

123

VV15855252100

FUEL PUMP

Pump Assy., Includes Ref. 124

1шт.

124

VV15855252500

O-RING

(Feed P Inner)

1шт.

125

VV11993459910

HYD CONNECTOR

Pipe

1шт.

126

VV22190120002

SEAL

12

1шт.

128

VV11980251250

BRACKET

Pump

1шт.

129

VV26106080162

BOLT,M8 x 16mm

M8 x 16 Plated

1шт.

130

VV26106080202

BOLT,M8 x 20mm

M8 x 20 Plated

1шт.
