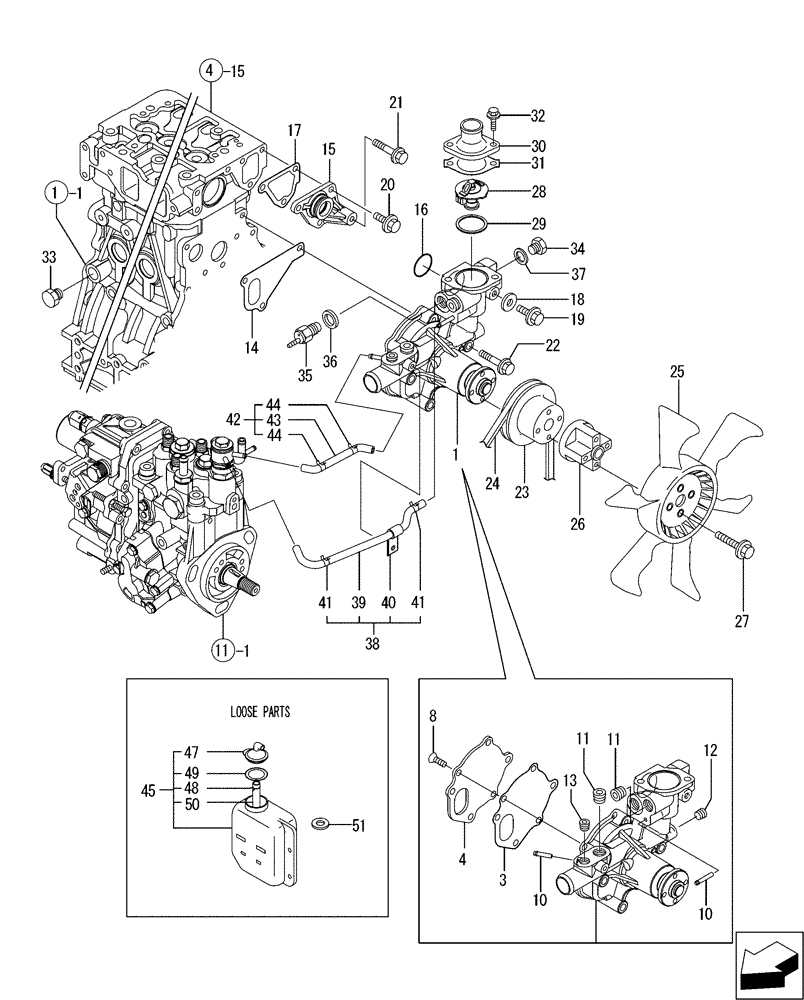

Запчасти Case CX31B (08-010[00]) - COOLING WATER SYSTEM (10) - ENGINE

1

VV12924242000

PUMP

Assy., Water, Includes Ref. 3 - 13

1шт.

3

VV12910042051

GASKET

(Non-Asb.)

1шт.

4

VV12910042121

PLATE

1шт.

8

VV12185042410

SCREW

3шт.

10

VV11980249113

JOINT

2шт.

11

VV12991649740

DRAIN PLUG

R03

2шт.

12

VV23876010000

PLUG

PT1/8, Screw

1шт.

13

VV23876020000

PLUG

PT1/4, Screw

1шт.

14

VV12948642021

GASKET

1шт.

15

VV12900442040

JOINT

1шт.

16

VV12948642140

O-RING

CW-P

1шт.

17

VV12439549840

GASKET

Thermo. Case

1шт.

18

VV23414080000

SEAL

8, Round

1шт.

19

VV26106080122

BOLT,M8 x 12mm

M8 x 12 Plated

1шт.

20

VV26106080162

BOLT,M8 x 16mm

M8 x 16 Plated

3шт.

21

VV26106080452

BOLT,M8 x 45mm

M8 x 45 Plated

1шт.

22

VV26106080602

BOLT,M8 x 60mm

M8 x 60 Plated

3шт.

23

VV12915542350

PULLEY

C.W. Pump

1шт.

24

VV12961242350

V-BELT

(A38)

1шт.

25

VV17134044740

FAN

Cooling

1шт.

26

VV17135344760

SPACER

1шт.

27

VV26106060402

BOLT,M6 x 40mm

M6 x 40 Plated

4шт.

28

VV12915549801

THERMOSTAT

(71)

1шт.

29

VV12915049811

GASKET

(Non-Asb.)

1шт.

30

VV12935049530

COVER

Thermostat

1шт.

31

VV12979549551

GASKET

(Non-Asb.)

1шт.

32

VV26106080222

BOLT,M8 x 22mm

M8 x 22 Plated

2шт.

33

VV17105649120

PLUG

Drain

1шт.

34

VV12145042450

PLUG,M16

M16

1шт.

35

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

Thermo (110 C)

1шт.

36

VV12446544950

GASKET

Gasket 16

1шт.

37

VV12446544950

GASKET

Gasket 16

1шт.

38

VV12900449610

PIPE ASSY.

A MP2, Includes Ref. 39 - 41

1шт.

39

VV12900449711

PIPE ASSY.

A MP2

1шт.

40

VV11980249730

CLAMP

CW-T

1шт.

41

VV12472259050

CLAMP

9

2шт.

42

VV12900449620

PIPE ASSY.

B MP2, Includes Ref. 43 & 44

1шт.

43

VV12900449721

PIPE

Water B MP2

1шт.

44

VV12472259050

CLAMP

9

2шт.

45

VV12146844520

TANK

Includes Ref. 47 - 50

1шт.

47

VV12145044531

CAP

1шт.

48

VV12445044560

CLAMP

1шт.

49

VV12147044581

GASKET

1шт.

50

VV23065070130

PIPE

7 x 130

1шт.

51

VV12915049360

PACKING

Gasket 10

1шт.
