Запчасти Case CX31B (08-008[00]) - CRANKSHAFT & PISTON (10) - ENGINE

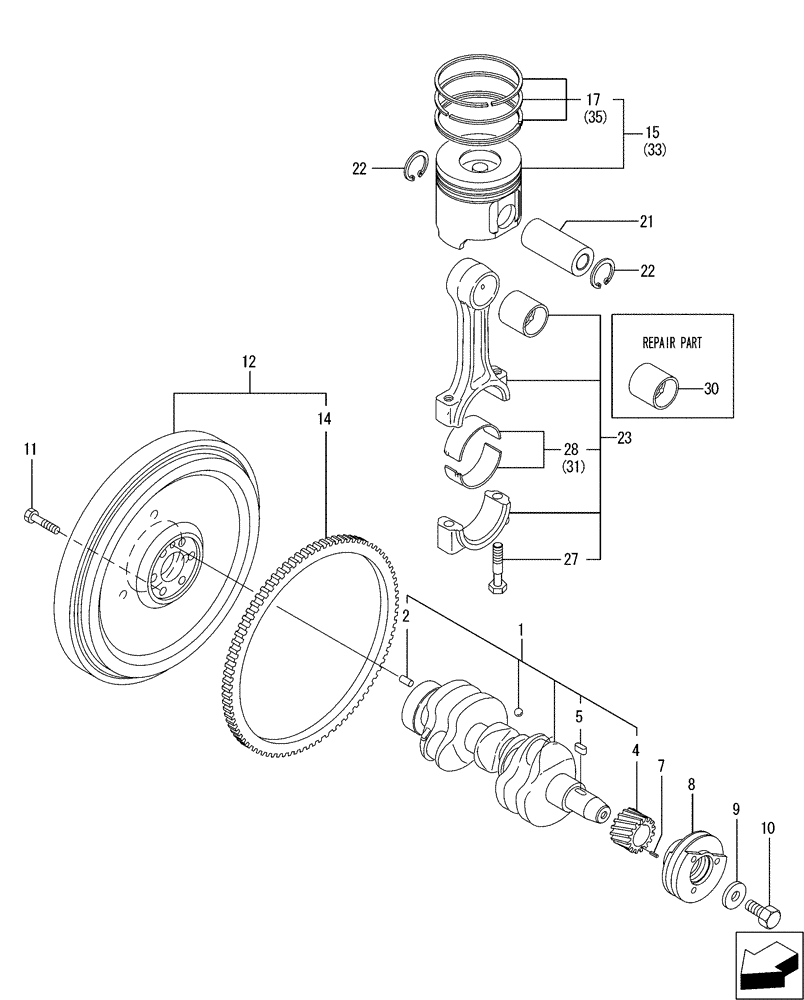

Схема запчастей Case CX31B - (08-008[00]) - CRANKSHAFT & PISTON (10) - ENGINE
17
22
12
11
27
10
22
23
14
8
33
4
31
5
28
7
2
1
9
15
35
21
30

Артикул

Название

Примечание

Количество

1

VV12900821000

CRANKSHAFT

Includes Ref. 2 - 5

1шт.

2

VV12910001580

PIN,M8 x 16mm

Parallel 8 x 16

1шт.

4

VV11980321200

GEAR

Crankshaft

1шт.

5

VV22512070140

KEY,M7 x 14mm

7 x 14

1шт.

7

VV22351030010

PIN

Spring 3 x 10

1шт.

8

VV12900421650

PULLEY

Crankshaft

1шт.

9

VV12979521661

WASHER

1шт.

10

VV12185021680

BOLT

V-Pulley

1шт.

11

VV12111121501

BOLT

Flywheel

6шт.

12

VV12912821590

FLYWHEEL

W/Ring Gear, Includes Ref. 14

1шт.

14

VV11986521600

GEAR

Ring

1шт.

15

VV12900522080

PISTON ASSY

Stud, Cyl. Head, Includes Ref. 17

3шт.

17

VV12900522500

PISTON RING SET

3шт.

21

VV12920222300

PISTON PIN

(D26,L70)

3шт.

22

VV22252000260

CIRCLIP

26

6шт.

23

VV72940223100

ROD

Assy., Connecting, Includes Ref. 27 & 28

3шт.

27

VV12155023200

BOLT

Connecting Rod

6шт.

28

VV12915023601

PIN

Metal, Crank

3шт.

30

VV12910023910

BUSHING

Piston Pin

3шт.

Repair Part

1шт.

31

VV12915023611

PLATE

Pin U.S=0.25

3шт.

Under-Size (U.S=0.25) Part

1шт.

33

VV12900522900

PISTON

W/Ring O.S=0.25, Includes Ref. 35

3шт.

Over-Size (O.S=0.25) Part

1шт.

35

VV12900522950

RING

Set

3шт.

Over-Size (O.S=0.25) Part

1шт.

Выбрано товаров: 26
