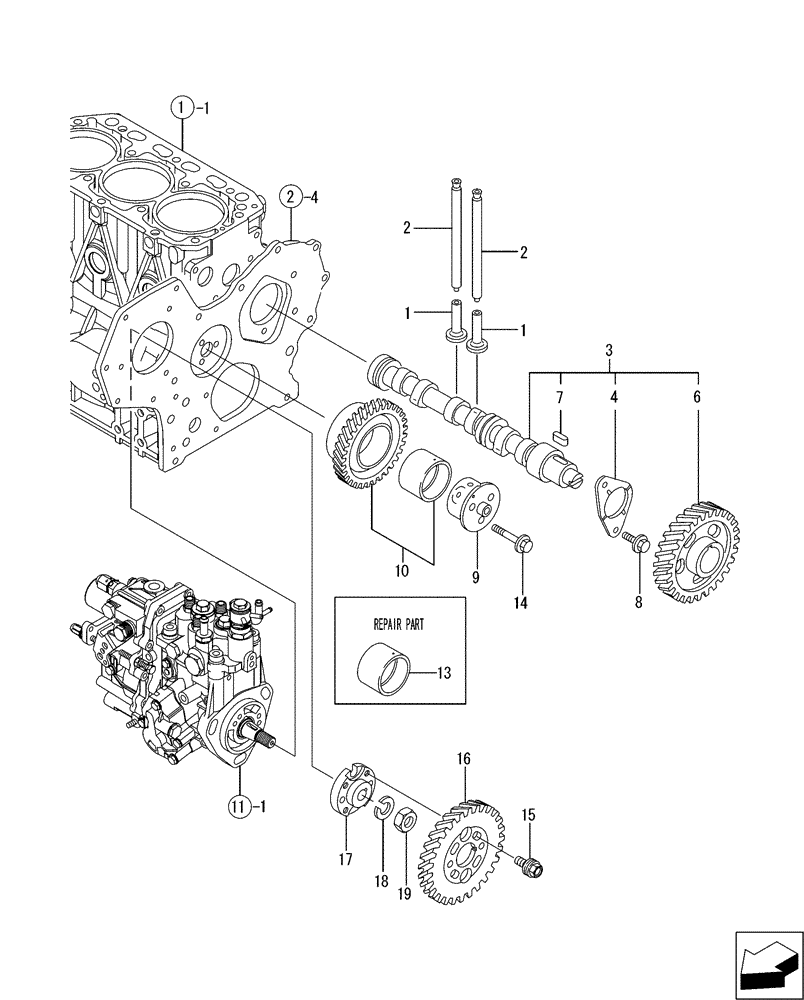

Запчасти Case CX31B (08-007[00]) - CAMSHAFT & DRIVING GEAR (10) - ENGINE

1

VV12915014200

TAPPET

6шт.

2

VV12915014400

PUSH ROD

6шт.

3

VV12912914580

CAMSHAFT

Assy., Includes Ref. 4 - 7

1шт.

4

VV12915002450

METAL LINER

Thrust (Cam)

1шт.

6

VV12915014101

GEAR SET

Camshaft

1шт.

7

VV22512070140

KEY,M7 x 14mm

7 x 14

1шт.

8

VV26106080142

BOLT,M8 x 14mm

M8 x 14 Plated

2шт.

9

VV11980325050

SHAFT

Idle Gear

1шт.

10

VV11980225101

GEAR

Idle

1шт.

13

VV11980225071

BUSHING

Idle Gear

1шт.

Repair Part

1шт.

14

VV26106080402

BOLT,M8 x 40mm

M8 x 40 Plated

3шт.

15

VV12915025301

BOLT

Cyl. Head

4шт.

16

VV11980225901

GEAR

Pump

1шт.

17

VV15855251151

FLANGE

1шт.

18

VV22217140000

SPRING WASHER

14

1шт.

19

VV26776140002

LOCK NUT,M14

M14 Plated

1шт.
