(01-084[01]) - GUARD INSTAL, CAB

Запчасти Case CX31B (01-084[01]) - GUARD INSTAL, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

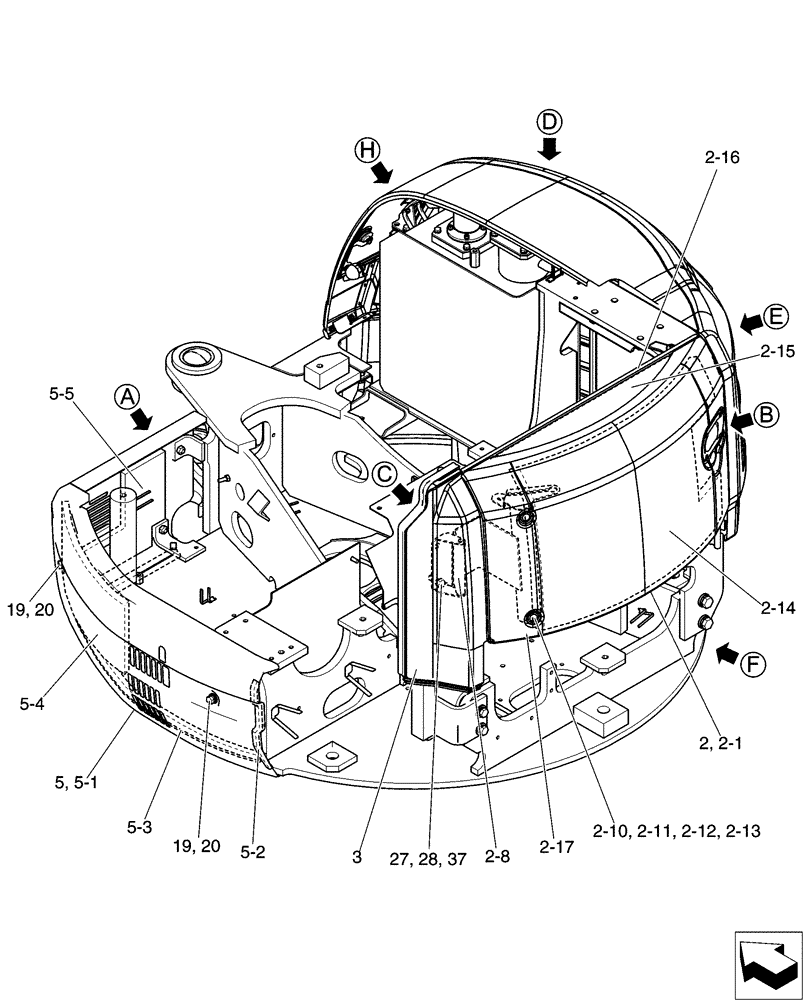

Схема запчастей Case CX31B - (01-084[01]) - GUARD INSTAL, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
19
5-5
5-2
5-4
5
37
20
2-16
28
19
2-8
27
5-3
2-12
2-13
2-15
2-14
2-10
2-11
3
5-1
2-17
2-1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

PW22C00022F1

ENGINE HOOD

Bonnet Assy.

1шт.

2-1

PW22C01148P1

ACCESS COVER

Bonnet

1шт.

2-8

PW22C01161P2

CHECK VALVE

1шт.

2-10

PW21C01413P1

CAPSCREW

2шт.

2-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

2-12

ZW26X08000

LOCK WASHER

Lock

2шт.

2-13

ZN18C08007

NUT

2шт.

2-14

PW22C01169P1

INSULATOR

1шт.

2-15

PW22C01130P1

FOAM INSULATION

1шт.

2-16

YR21C01165D8

WEATHERSTRIP

1шт.

2-17

YN21C01712DD

WEATHERSTRIP

1шт.

3

PW21C01823F1

COVER ASSY

1шт.

5

PW21C01804F1

COVER ASSY

Incls. Refs. 5-1 - 5-5

1шт.

5-1

PW21C01790P2

COVER ASSY

1шт.

5-2

PM21C01233P1

RUBBER

1шт.

5-3

PM21C01152DV

WEATHERSTRIP

1шт.

5-4

PW21C01683P1

FOAM INSULATION

1шт.

5-5

PW21C01684P1

FOAM INSULATION

1шт.

19

PA41C01005D3

BOLT

Sems

7шт.

20

YT21C01187P2

WASHER

6шт.

27

ZW26X12000

LOCK WASHER

10шт.

28

2418T10357

WASHER

8шт.

37

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

2шт.
