(01-049[00]) - LEVER ASSY, CONTROL

Запчасти Case CX31B (01-049[00]) - LEVER ASSY, CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

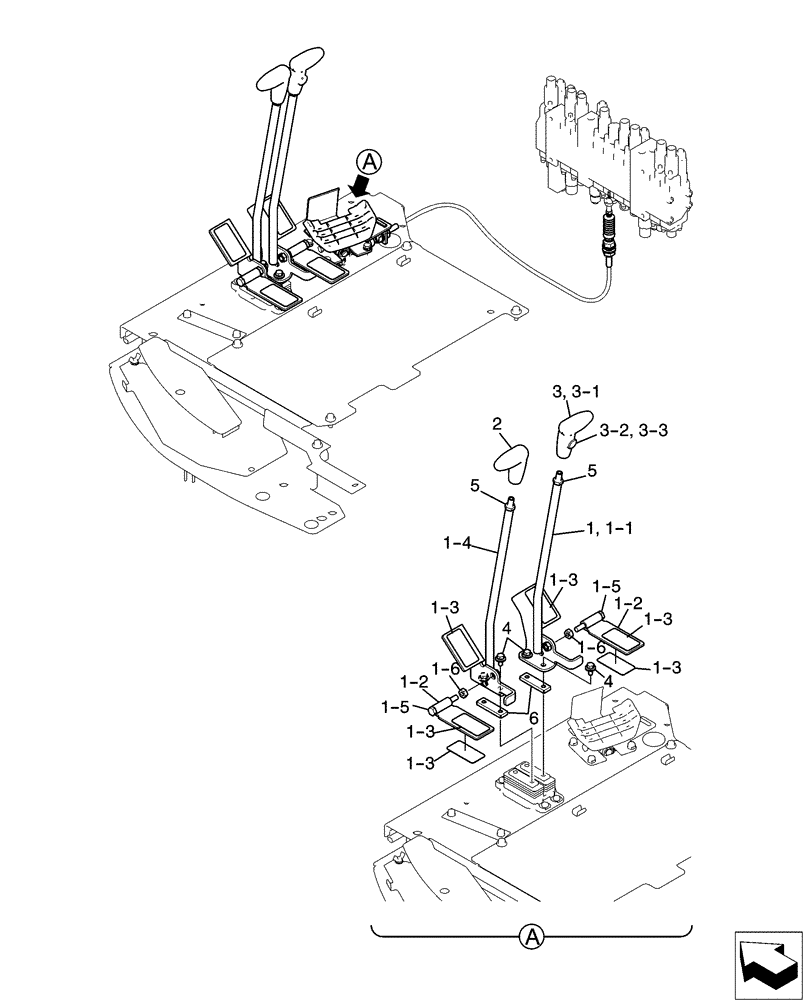

Схема запчастей Case CX31B - (01-049[00]) - LEVER ASSY, CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS
1-5
5
1-3
3
5
1-3
1
1-3
1-3
1-1
1-3
1-6
1-5
3-3
1-2
1-6
1-3
1-2
2
6
4
3-2
3-1
1-4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH50M00011F1

Control

1шт.

1

PH50M01107F1

LEVER

1шт.

1-1

PH50M01108P1

LEVER

1шт.

1-2

PH55M01003P1

PEDAL

2шт.

1-3

PF55M01006P1

SEAT

Sheet

6шт.

1-4

PH50M01111P1

LEVER

1шт.

1-5

HS18C10070G1

CAP

Screw

2шт.

1-6

ZN18C10008

NUT

2шт.

2

YN03M01040P1

GRIP

1шт.

3

YN03M01286F1

GRIP

1шт.

3-1

YN03M01286S001

GRIP

1шт.

3-2

YN03M01286S002

SWITCH

(Used for 2-speed Select)

1шт.

3-3

YN03M01286S003

CAP

1шт.

4

PA21C01133P1

BOLT

Sems

4шт.

5

2420Z1232

NUT

2шт.

6

PW03M01889P2

COVER

2шт.
