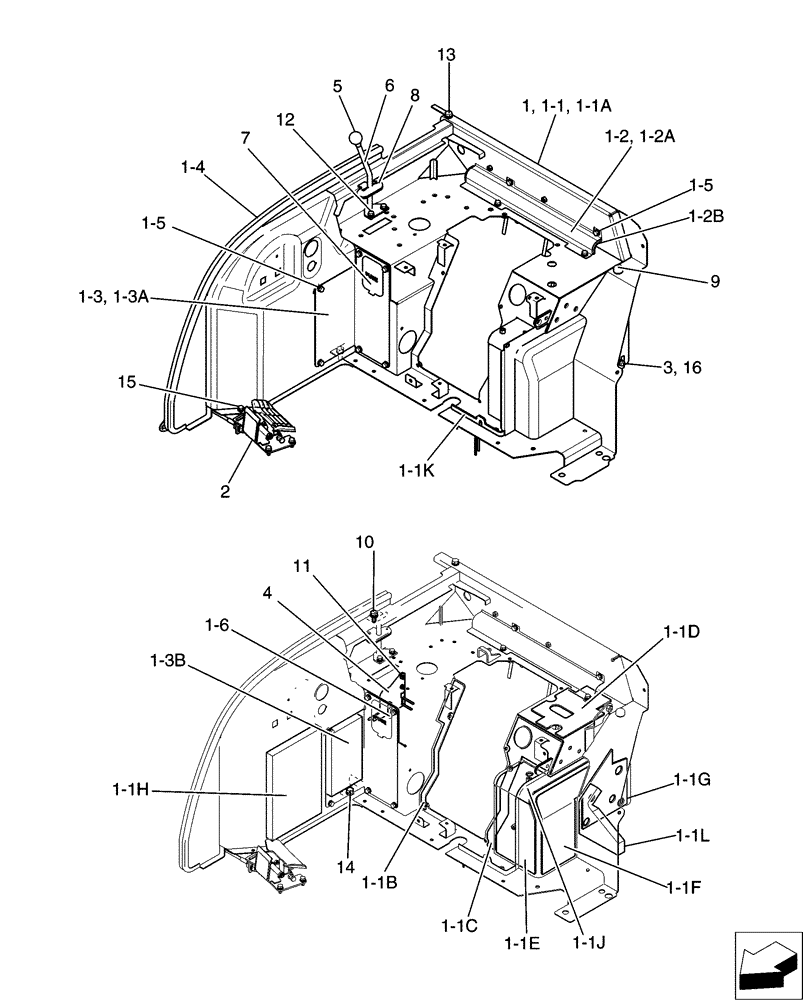

Запчасти Case CX31B (01-044[01]) - CONTROLS, OPERATORS, CAB, ANGLE DOZER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PW10M00016F1

STAND

Control

1шт.

1-1

PW10M01383F1

STAND

1шт.

1-1a

PW10M01382P2

STAND

1шт.

1-1b

PW10M01202P1

FOAM INSULATION

1шт.

1-1c

PW10M01103P1

FOAM INSULATION

1шт.

1-1d

PW10M01366P1

FOAM INSULATION

1шт.

1-1e

PW10M01180P1

FOAM INSULATION

1шт.

1-1f

PH10M01045P1

FOAM INSULATION

1шт.

1-1g

PW10M01369P1

FOAM INSULATION

1шт.

1-1h

PW10M01203P1

FOAM INSULATION

1шт.

1-1j

PW10M01181P1

FOAM INSULATION

1шт.

1-1k

PW10M01279P1

RUBBER

1шт.

1-1l

PW03M01939P1

INSULATION

1шт.

1-2b

PH03M01472P1

RUBBER

1шт.

1-3

PW03M01586F1

COVER ASSY

1шт.

1-3a

PH03M01432P2

COVER

1шт.

1-3b

PW10M01177P1

FOAM INSULATION

1шт.

1-4

PM21C01573D1

WEATHERSEAL STRIP

1шт.

1-5

PA03M01093D2

BOLT

Sems

10шт.

1-6

PM22C01020DR

TRIM PANEL

1шт.

2

PW55M00015F1

Instal

1шт.

3

PW03M01652P1

COVER

1шт.

4

PH03M01435P1

COVER

1шт.

5

PW03M01768F2

GRIP

Angle Dozer

1шт.

6

PW03M01956P2

LEVER

1шт.

7

PW03M01543P1

GROMMET

1шт.

8

PW03M01972P1

GROMMET

1шт.

10

ZM22C10025

BOLT

Sems

1шт.

11

ZM61C06012

BOLT

Sems

2шт.

12

ZM22C08016

BOLT

Sems

2шт.

13

PM06C01045D3

BOLT

Sems

1шт.

14

ZM22C10030

BOLT

Sems

1шт.

15

ZM22C08020

BOLT

Sems

1шт.

16

PA03M01093D2

BOLT

Sems

2шт.
