(01-043[02]) - CONTROLS, OPERATORS, CANOPY

Запчасти Case CX31B (01-043[02]) - CONTROLS, OPERATORS, CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

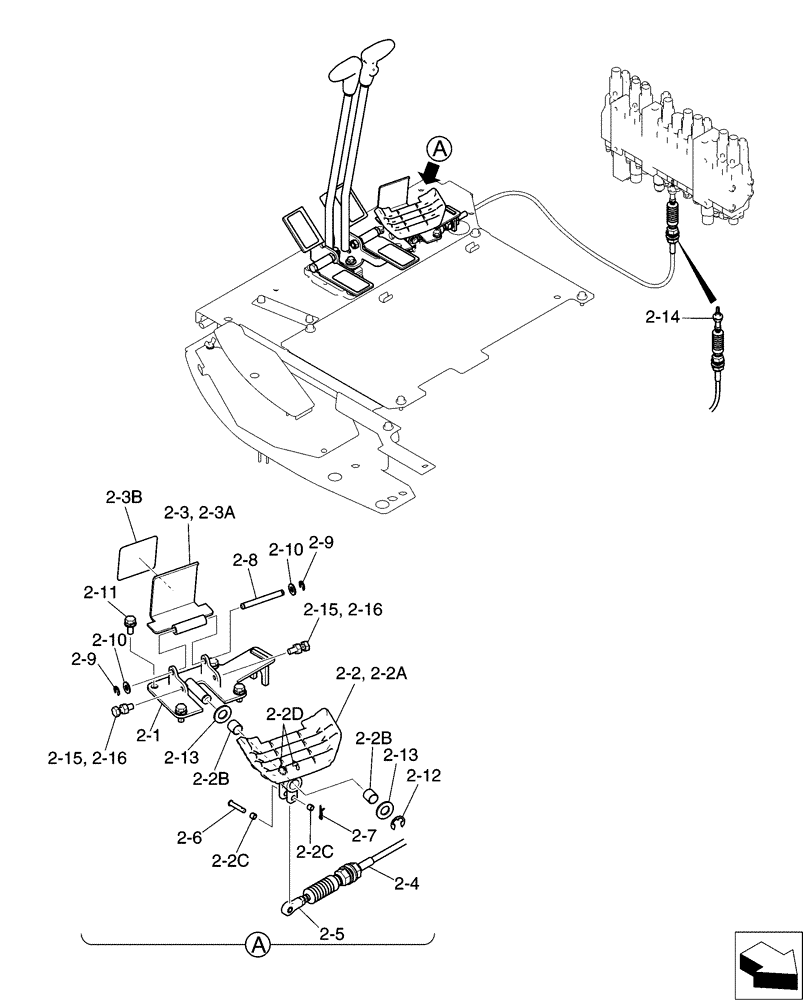

Схема запчастей Case CX31B - (01-043[02]) - CONTROLS, OPERATORS, CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS
2-16
2-16
2-8
2-13
2-14
2-3b
2-5
2-9
2-7
2-9
2-12
2-6
2-4
2-10
2-2c
2-2b
2-2b
2-3a
2-15
2-2c
2-10
2-1
2-2
2-3
2-15
2-11
2-2a
2-2d
2-13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2-1

PW03M01619P2

SUPPORT

1шт.

2-2

PW55M01062F1

PEDAL

1шт.

2-2a

PW55M01061P1

PEDAL

1шт.

2-2b

2405R312D1415

BUSHING

2шт.

2-2c

2405R312D0606

BUSHING

2шт.

2-2d

PW55M01060P1

PLATE

2шт.

2-3

PM03M01277F1

COVER ASSY

1шт.

2-3a

PM03M01294P2

COVER

1шт.

2-3b

PM03M01309P1

SHEET

1шт.

2-4

PM03M01448D7

CABLE,1200mm L

Control

1шт.

2-5

PW55M01031P1

BALL JOINT

1шт.

2-6

PW55M01059P1

PIN

1шт.

2-7

2419R9D1

COTTER PIN

1шт.

2-8

PW03M01805P1

PIN

1шт.

2-9

ZR36X00700

RING

Snap

2шт.

2-10

ZW16P08000

WASHER

2шт.

2-11

ZM22C08020

BOLT

Sems

4шт.

2-12

ZR36X01200

RING

Snap

1шт.

2-13

ZW16P14000

WASHER

2шт.

2-14

2420R736D2

END

Rod

1шт.

2-15

ZS18C08025

SCREW,Hex, M8 x 25mm

Cap

2шт.

2-16

ZN18C08007

NUT

2шт.

2-17

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.
