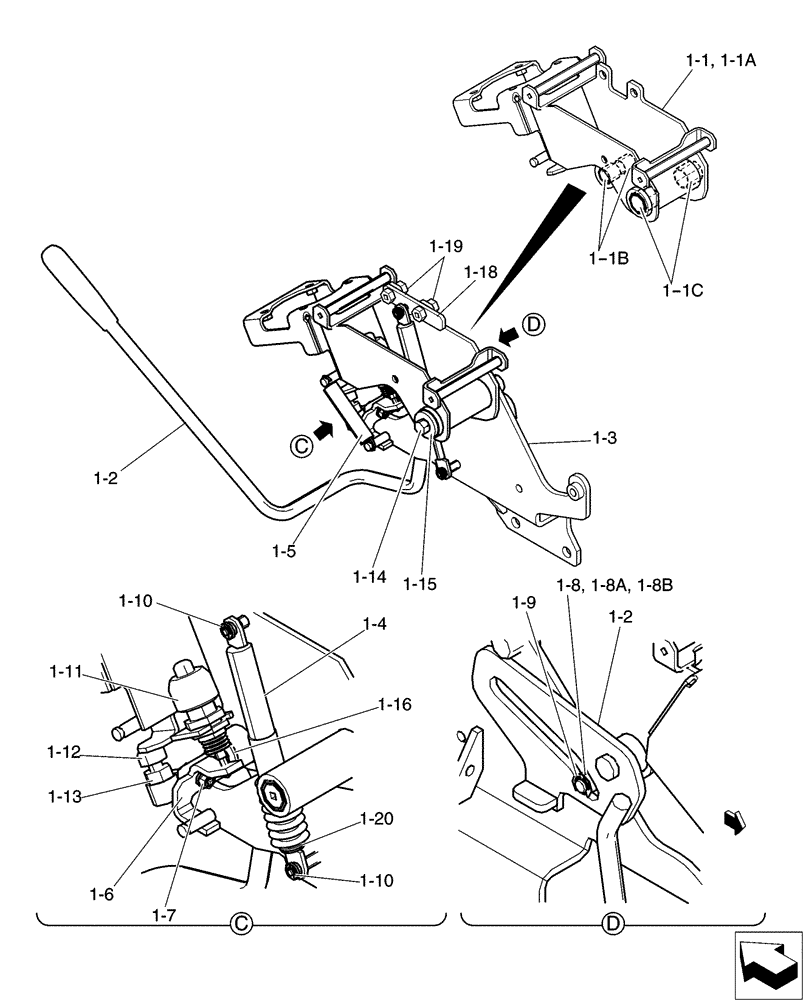

Запчасти Case CX31B (01-041[02]) - CONTROLS, OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1-1

PW03M01500F1

CONTROL

Box

1шт.

1-1a

PW03M01501P3

CONTROL

Box

1шт.

1-1b

2405R312D1515

BUSHING,15mm ID x 17mm OD x 15mm L

2шт.

1-1c

2405R312D2020

BUSHING

2шт.

1-2

PW03M01871P1

LEVER

Lock

1шт.

1-3

PW03M01858P1

SUPPORT

1шт.

1-4

PH03M01513F1

GAS STRUT

Spring

1шт.

1-5

PW03M01428P1

SPRING

1шт.

1-6

PW03M01415P1

SUPPORT

1шт.

1-7

ZM61C06020

BOLT

Sems

2шт.

1-8

PW03M01392F1

ROLLER ASSY.,15mm OD x 15mm L

1шт.

1-8a

PW03M01391P1

ROLLER

1шт.

1-8b

2405R312D1015

BUSHING

1шт.

1-9

ZR36X00900

SNAP RING

Snap

1шт.

1-10

ZR36X00500

SNAP RING

Snap

2шт.

1-11

PA50S00001P1

LIMIT SWITCH

1шт.

1-12

PY06C01040P1

STOP

1шт.

1-13

ZN18F10008

NUT

1шт.

1-14

ZM12C08016

BOLT

Sems

1шт.

1-15

PM02C01425P1

WASHER

1шт.

1-16

ZW16P14000

WASHER

1шт.

1-18

PW03M01815P1

LEVER

1шт.

1-19

ZM22C08025

BOLT

Sems

2шт.

1-20

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

1шт.
