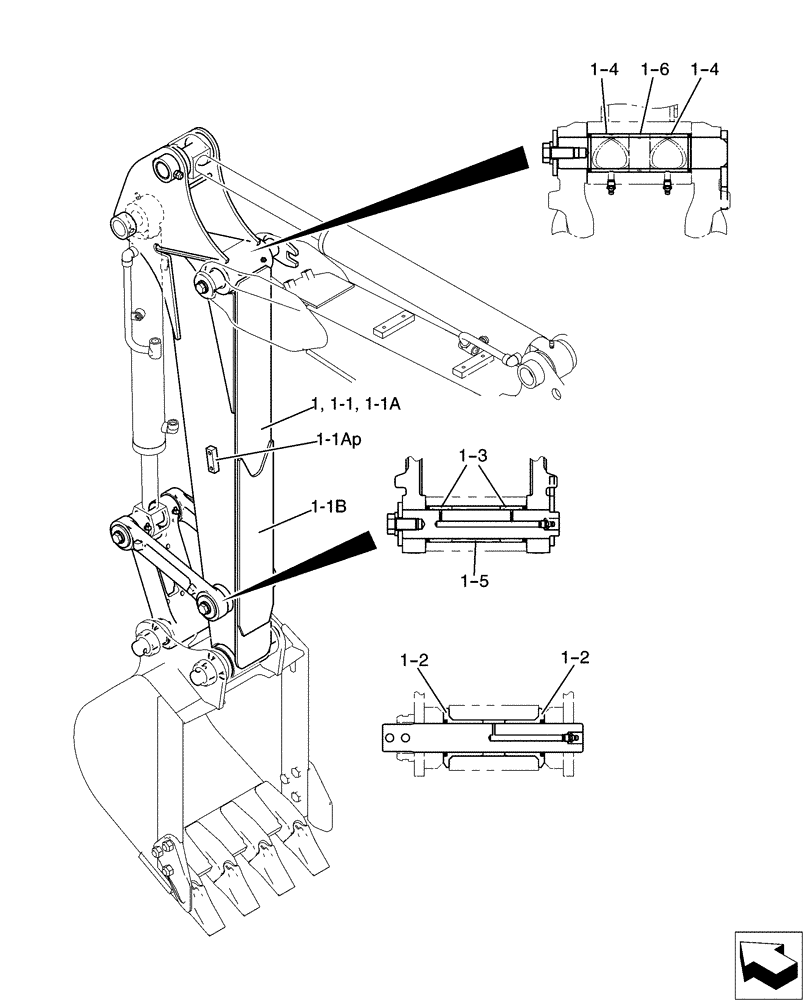

Запчасти Case CX31B (03-018[00]) - ARM ASSY, 1.18M, NIBBLER & BREAKER (84) - BOOMS, DIPPERS & BUCKETS

PW12B00120F1

ARM

1.18M (Nibbler & Breaker)

1шт.

1

PW12B00121F1

ARM

1шт.

1-1

PW12B00122P2

1шт.

1-1a

PW12B00110P2

1шт.

1-1ap

PV12B01227P1

BLOCK

Tapped

2шт.

1-1b

PW12B01277P1

PLATE

1шт.

1-2

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

1-3

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

1-4

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

1-5

PW12B01208D1

COLLAR

1шт.

1-6

PX12B01016P1

COLLAR

1шт.
