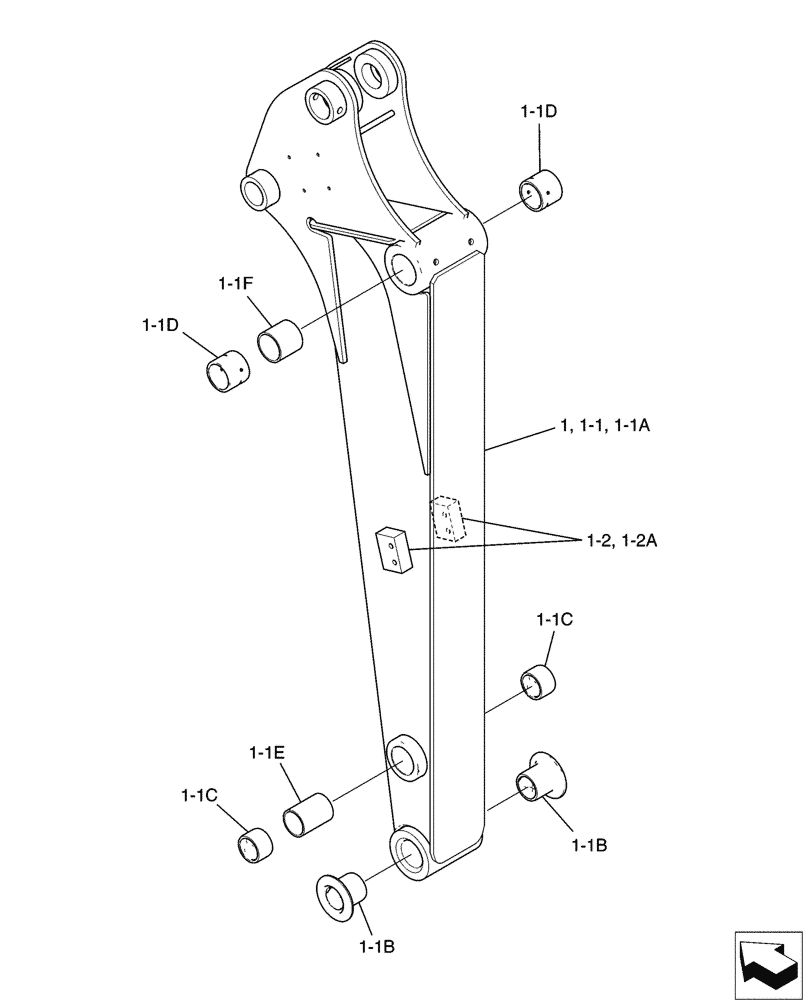

Запчасти Case CX31B (03-017[00]) - ARM ASSY, LONG 1.47M (84) - BOOMS, DIPPERS & BUCKETS

1

PW12B00188F1

Assy, Long 1.47M

ARM

1шт.

1-1

PW12B00189F1

1шт.

1-1a

PW12B00191P1

1шт.

1-1b

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

1-1c

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

1-1d

PX02B01282P1

BUSHING

2шт.

1-1e

PW12B01208D1

COLLAR

1шт.

1-1f

PX12B01363P1

COLLAR

1шт.

1-2

PW12B00190P1

1шт.

1-2a

YN12B11128P1

BLOCK

Tapped, Serial Range: PW14-46519-PW14-46669

2шт.

1.2a

PY12B01321P1

BLOCK

Tapped, Start Serial: PW14-46670

2шт.

1-2b

2416T23627D2

BLOCK

Tapped - Not Shown

2шт.
