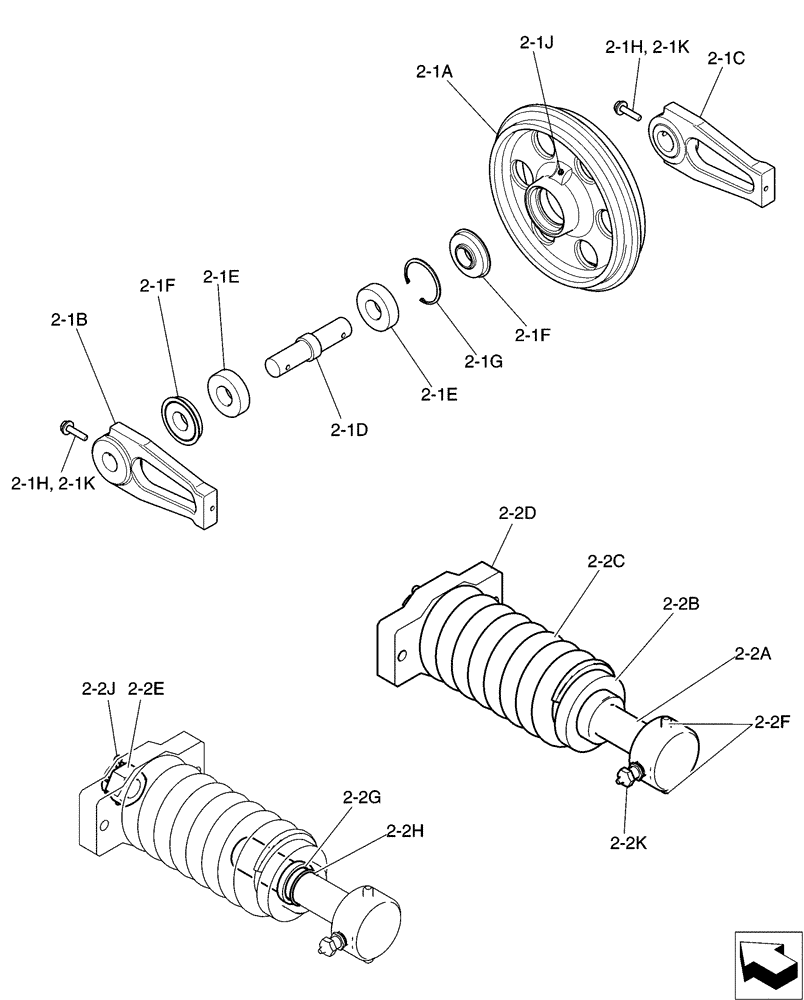

Запчасти Case CX31B (02-007[03]) - IDLER ASSY, CRAWLER (48) - TRACKS & TRACK SUSPENSION

2-1a

PX52D00022P2

IDLER

1шт.

2-1b

PX52D01025P1

COLLAR

1шт.

2-1c

PX52D01026P1

COLLAR

1шт.

2-1d

PX52D01014P1

SHAFT

1шт.

2-1e

PW52D01009P1

BEARING,35mm ID x 80mm OD x 21mm W

2шт.

2-1f

PH52D01006P1

SEAL,41mm ID x 88mm OD x 19mm Thk

2шт.

2-1g

ZR26X08000

SNAP RING

1шт.

2-1h

PX52D01015P1

CAPSCREW

2шт.

2-1j

PV52D01007P1

PLUG

1шт.

2-1k

ZW16H10000

WASHER

2шт.

2-2a

PX01V01008P1

PISTON

1шт.

2-2b

PX70V00006P1

CYLINDER

Grease

1шт.

2-2c

PX54D01010P1

SPRING

1шт.

2-2d

PX54D01011P1

PLATE

1шт.

2-2e

PX54D01013P1

NUT

1шт.

2-2f

PX54D01014P1

PIN,10mm OD x 24mm L

2шт.

2-2g

PW54D01006P1

OIL SEAL

1шт.

2-2h

ZD12G03500

O-RING,34.40mm ID x 40.60mm OD x 3.10mm

1шт.

2-2j

ZP15D05045

PIN

Split

1шт.

2-2k

PX80B01026P1

LUBE NIPPLE

1шт.
