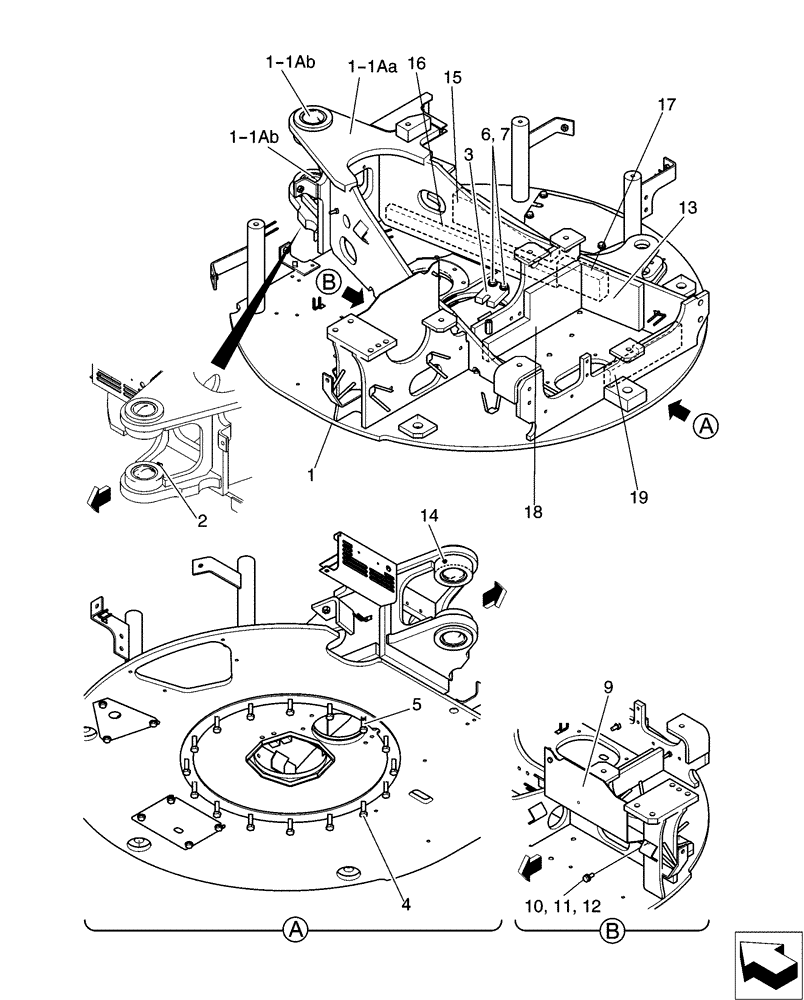

Запчасти Case CX31B (01-001[00]) - FRAME GROUP, UPP (39) - FRAMES AND BALLASTING

PW52F00047F1

Upp

1шт.

1

PW52F00060P1

Upp

1шт.

1-1aa

PW52F01355P1

1шт.

1-1ab

PW52F01425P2

BUSHING

2шт.

2

ZG91U02000

LUBE NIPPLE

1шт.

3

PW52F01387P1

STOP

1шт.

4

ZS18C12070

SCREW,Hex, M12 x 70mm

Cap

15шт.

5

HS58C12070G2

BOLT

1шт.

6

ZS18C12040

SCREW,Hex, M12 x 40mm

Cap

2шт.

7

ZW16H12000

WASHER

2шт.

9

PW52F01330P1

PLATE

1шт.

10

ZW26X10000

LOCK WASHER

2шт.

11

ZW16P10000

WASHER

2шт.

12

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

2шт.

13

PW52F01309P1

FOAM INSULATION

1шт.

14

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

15

PW52F01416P1

FOAM INSULATION

1шт.

16

PW52F01417P1

FOAM INSULATION

1шт.

17

PW52F01418P1

FOAM INSULATION

1шт.

18

PW52F01420P1

FOAM INSULATION

1шт.

19

PW52F01421P1

FOAM INSULATION

1шт.
