(01-010[00]) - ENGINE INSTAL, COOLER

Запчасти Case CX31B (01-010[00]) - ENGINE INSTAL, COOLER (10) - ENGINE

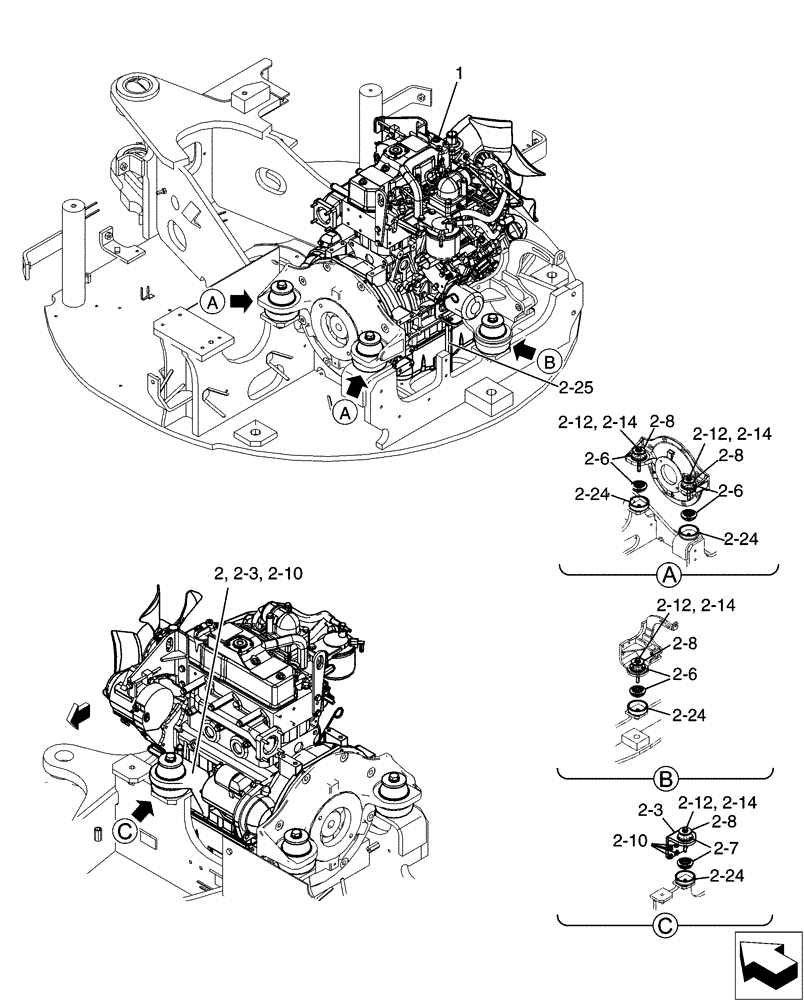

Схема запчастей Case CX31B - (01-010[00]) - ENGINE INSTAL, COOLER (10) - ENGINE
2-14
2
2-14
2-3
2-24
2-6
2-24
2-14
2-14
2-8
2-25
2-12
2-12
2-7
2-10
2-10
1
2-69
2-6
2-8
2-3
2-12
2-24
2-12
2-8
2-24
2-8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW02P00027F1

Instal (Cooler)

1шт.

1

PW02P00018F2

ENGINE

1шт.

2

PW02P00028F1

Instal

1шт.

2-3

PW02P01056P1

BRACKET

1шт.

2-6

PW02P01054D1

RUBBER MOUNTING

6шт.

2-7

PW02P01054D2

RUBBER MOUNTING

2шт.

2-8

PW01P01022P1

WASHER

4шт.

2-10

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

2-12

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

2-14

ZW16H12000

WASHER

4шт.

2-24

PW02P01041P1

COVER

4шт.

2-25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.
