/ / / / / / / / (03-009[00]) - HYD LINES, BOOM 2.3M, NIBBLER & BREAKER
Запчасти Case CX31B (03-009[00]) - HYD LINES, BOOM 2.3M, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

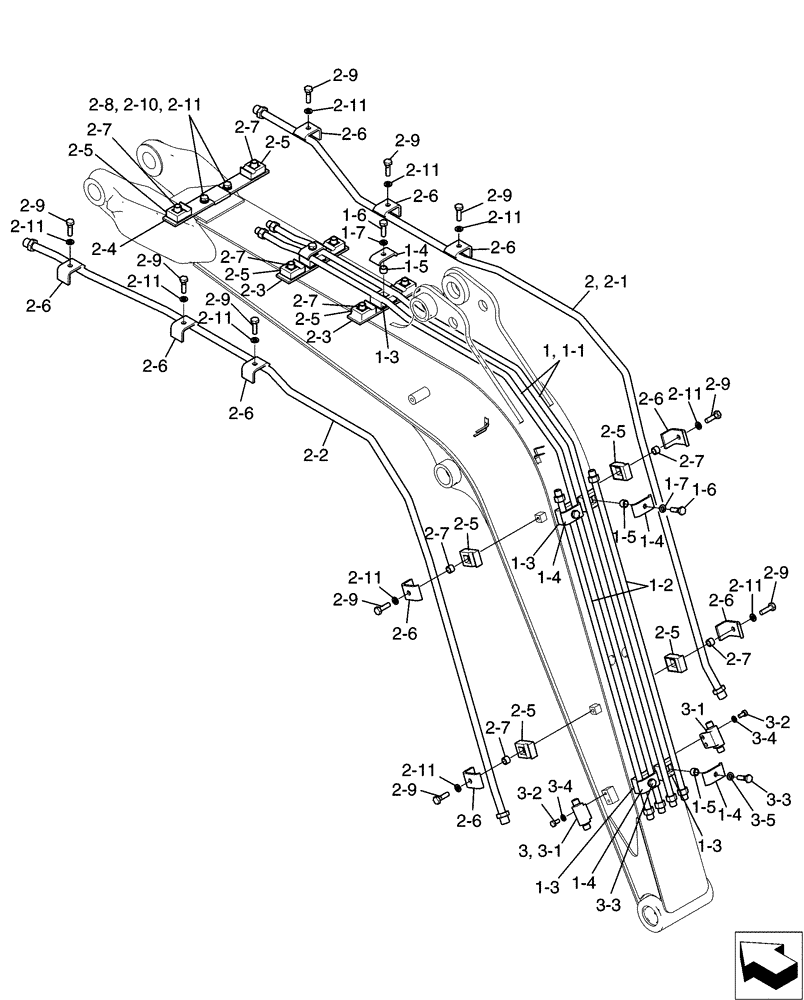

![Схема запчастей Case CX31B - (03-009[00]) - HYD LINES, BOOM 2.3M, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/752174.png)
1-1
2-11
2-9
2-7
2-6
2-8
2-11
2-10
3-3
1-6
2-9
2-3
1-4
2-7
2-7
3-1
2-2
1-7
1
1-5
2-5
2-11
2-9
2-9
1-6
2-6
3
2-9
2-7
2-11
1-3
2-3
2-7
2-6
2-7
2-6
2-11
2-5
2-92-9
2-6
1-2
2-1
2-6
3-3
2-11
2-4
2-6
2-5
2-11
1-5
2-5
2-7
2-6
3-2
2-9
1-5
2-6
2-9
2
2-11
2-7
2-5
2-9
3-1
2-5
3-2
1-3
3-5
2-9
2-11
1-4
2-5
1-7
1-4
2-11
1-3
3-4
3-4
2-5
1-4
1-4
2-6
1-3
2-11
PW42H00054F1
Boom 2.3M (Nibbler & Breaker)
1шт.
1
PW42H00058F1
Boom
1шт.
1-1
PW42H01151P1
HYD TUBE
2шт.
1-2
PX42H01059P1
TUBE
2шт.
1-3
PV42H01110P2
CLAMP
6шт.
1-4
PV42H01112P1
CLAMP
6шт.
1-5
PV42H01137P1
SPACER
6шт.
1-6
ZS18C10035
SCREW,Hex, M10 x 35mm
Cap
4шт.
1-7
ZW26X10000
LOCK WASHER
4шт.
2
PW42H00060F1
Boom
1шт.
2-1
PW42H01152P1
HYD TUBE
1шт.
2-2
PW42H01153P1
HYD TUBE
1шт.
2-3
PW42H01155P1
BRACKET
2шт.
2-4
PW42H01156P1
BRACKET
1шт.
2-5
PV42H01133P2
CLAMP
10шт.
2-6
PV42H01134P1
CLAMP
10шт.
2-7
PV42H01137P1
SPACER
10шт.
2-8
ZS18C10025
SCREW,Hex, M10 x 25mm
Cap
2шт.
2-9
ZS18C10035
SCREW,Hex, M10 x 35mm
Cap
10шт.
2-10
ZW16X10000
WASHER
2шт.
2-11
ZW26X10000
LOCK WASHER
12шт.
3
PW42H00062F1
Boom
1шт.
3-1
PM42H01165P1
HYD CONNECTOR
2шт.
3-2
ZS18C08016
SCREW,Hex, M8 x 16mm
Cap
4шт.
3-3
ZS18C10035
SCREW,Hex, M10 x 35mm
Cap
2шт.
3-4
ZW26X08000
LOCK WASHER
Lock
4шт.
3-5
ZW26X10000
LOCK WASHER
2шт.
