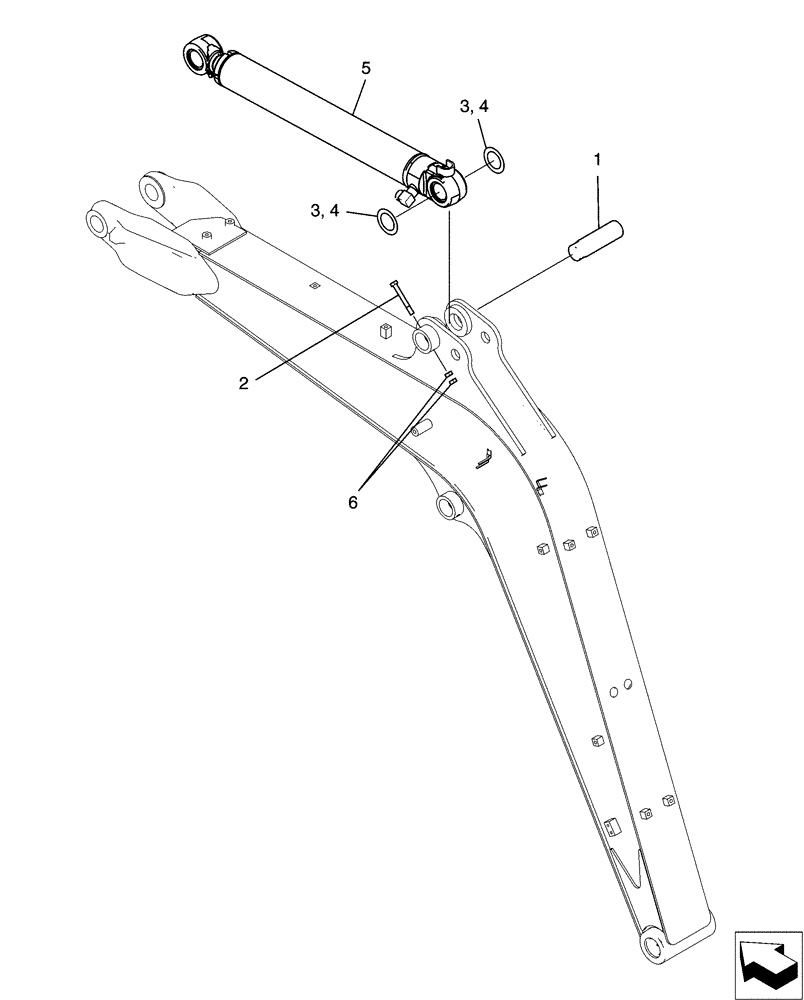

Запчасти Case CX31B (03-006[01]) - CYLINDER INSTAL, ARM (35) - HYDRAULIC SYSTEMS

PW02B00150F1

Instal (Arm)

1шт.

1

PW02B01306P1

PIN,45mm OD x 151mm L

1шт.

2

HS18C10085G2

BOLT

1шт.

3

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

1шт.

4

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

5

PW01V00070F2

HYDRAULIC CYLINDER,Double Acting, 45mm Rod, 541mm Stroke

Arm

1шт.

6

ZN18C10008

NUT

2шт.
