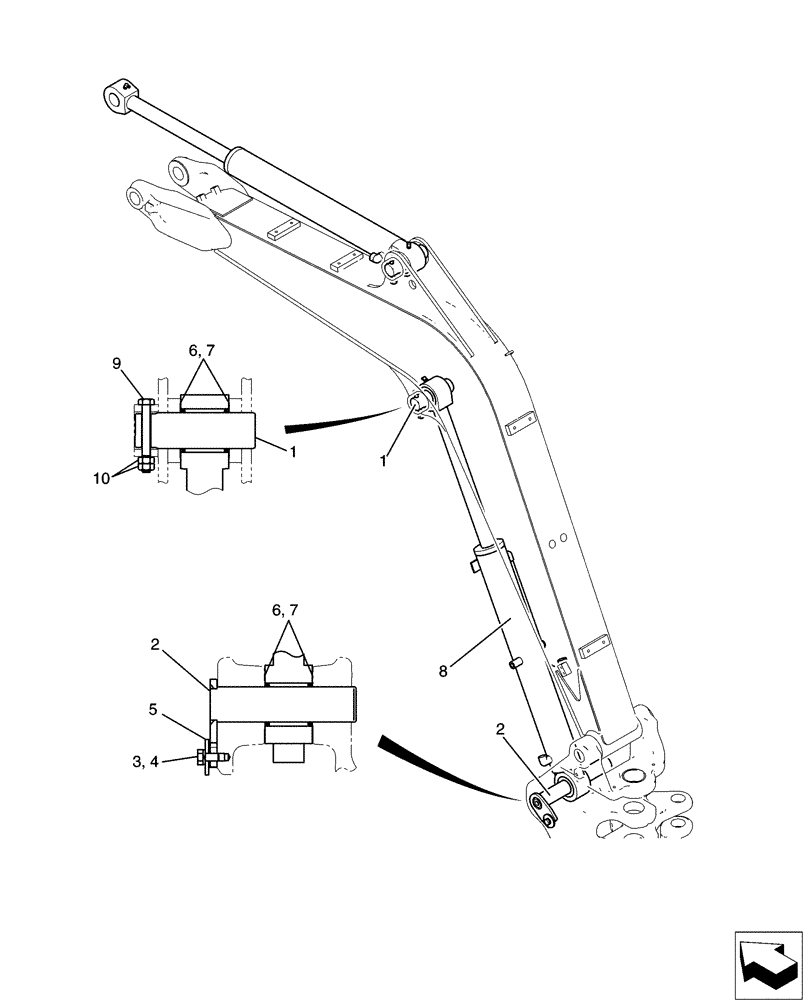

Запчасти Case CX31B (03-004[01]) - CYLINDER INSTAL, CANOPY (35) - HYDRAULIC SYSTEMS

1

PW02B01306P1

PIN,45mm OD x 151mm L

1шт.

2

PX02B01263P1

PIN,45mm OD x 187mm L

1шт.

3

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

4

ZW26X10000

LOCK WASHER

1шт.

5

2418T21137

WASHER

1шт.

6

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

2шт.

7

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

3шт.

8

PW01V00068F1

CYLINDER,Double Acting, 45mm Rod, 585mm Stroke

Boom

1шт.

9

HS18C10085G2

BOLT

1шт.

10

ZN18C10008

NUT

2шт.
