(02-021[02]) - CYLINDER INSTAL, ANGLE DOZER

Запчасти Case CX31B (02-021[02]) - CYLINDER INSTAL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

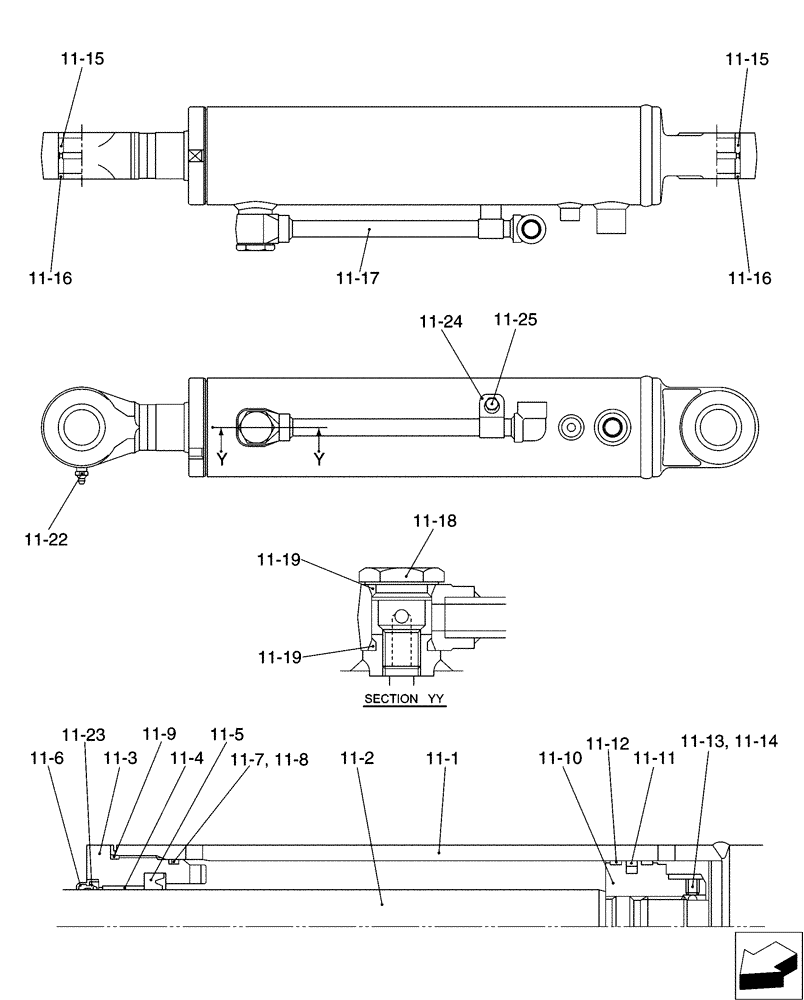

Схема запчастей Case CX31B - (02-021[02]) - CYLINDER INSTAL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS
11-19
11-23
11-15
11-24
11-25
11-16
11-6
11-22
11-18
11-13
11-7
11-11
11-3
11-10
11-14
11-19
11-15
11-8
11-16
11-2
11-4
11-5
11-17
11-1
11-9
11-12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

11-1

NSS

NOT SOLD SEPARAT

Tube Assy.

1шт.

11-2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

11-3

PW01V00043S003

CYLINDER HEAD

1шт.

11-4

PW01V00010S004

BUSHING

1шт.

11-5

2438U635S3

RING

1шт.

11-6

PH01V00006S006

RING

1шт.

11-7

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

11-8

PH01V00015S008

BACK-UP RING

1шт.

11-9

ZD11G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

11-10

PW01V00043S015

PISTON

1шт.

11-11

2438U852S15

RING

Piston

1шт.

11-12

PH01V00015S017

RING

2шт.

11-13

2438U1057S16

SET SCREW

1шт.

11-14

2436U946S11

BALL

1шт.

11-15

PW01V00052S015

BUSHING

2шт.

11-16

PW01V00012S020

WIPER SEAL

4шт.

11-17

PW01V00052S017

TUBE

1шт.

11-18

PH01V00017S027

PLUG

1шт.

11-19

ZD12P02290

O-RING

2шт.

11-22

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

11-23

PW01V00043S030

CAP

1шт.

11-24

PW01V00043S032

CLAMP

1шт.

11-25

LF01V00002S034

BOLT

1шт.

PW01V00052R100

REPAIR KIT

Repair Kit Consists Of Ref: 11-1(1), 11-15(1)

1шт.

PW01V00052R200

REPAIR KIT

Repair Kit Consists Of Ref: 11-2(1), 11-15(1)

1шт.

PW01V00048R300

REPAIR KIT

Consists Of Ref: 11-5(1), 11-6(1), 11-7(1), 11-8(1), 11-9(1), 11-11(1), 11-12(2)

1шт.
