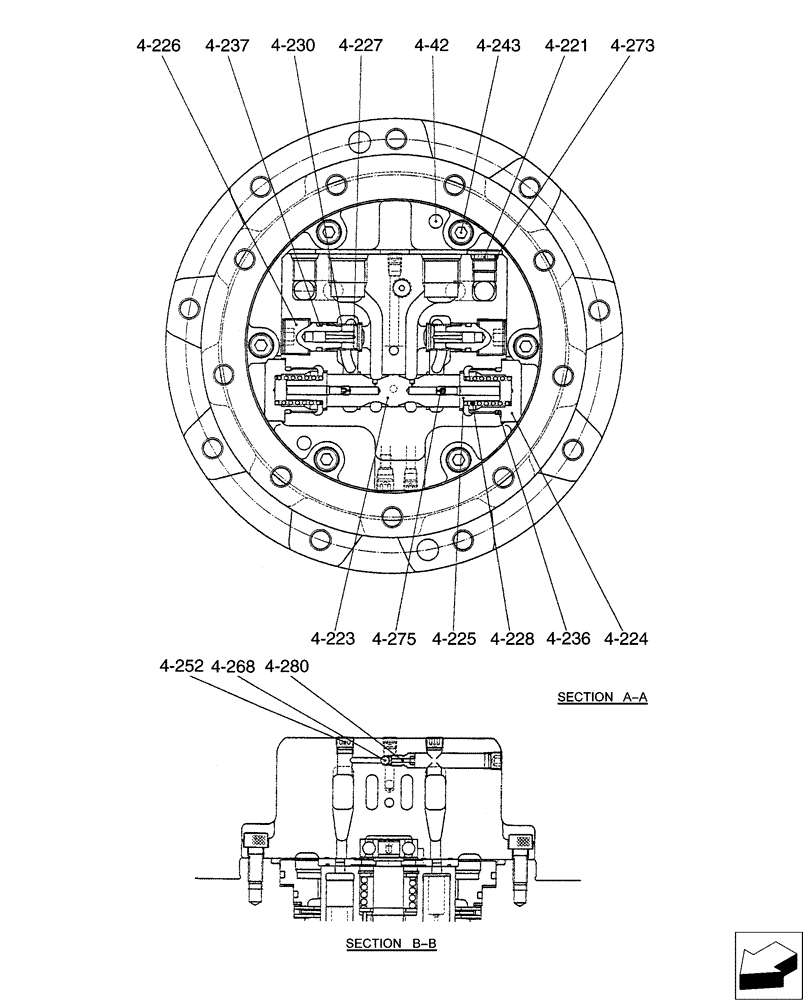

Запчасти Case CX31B (02-003[03]) - MOTOR INSTAL, PROPEL (35) - HYDRAULIC SYSTEMS

4-42

PY15V00006S142

PIN

2шт.

4-221

2441U995S192

PLUG

2шт.

4-223

NSS

NOT SOLD SEPARAT

Spool

1шт.

4-224

PH15V00009S224

PLUG

2шт.

4-225

PH15V00009S225

SEAT

2шт.

4-226

2441U831S126

PLUG

2шт.

4-227

2441U831S127

VALVE

Check

2шт.

4-228

PH15V00009S228

SPRING

2шт.

4-230

2441U831S130

SPRING

2шт.

4-236

ZD12P02200

O-RING

2шт.

4-237

ZD12P01200

O-RING

2шт.

4-243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

4-252

YX15V00003S146

PLUG

4шт.

4-268

PH15V00009S268

BALL

1шт.

4-273

ZD12P01100

O-RING

2шт.

4-275

PH15V00009S275

ORIFICE

4шт.

4-280

PH15V00009S280

PLUG

1шт.

PX15V00025R400

REPAIR KIT

Consists Of Ref: 4-201(1), 4-223(1), 4-263(1), 4-264(1), 4-266(1), 4-268(1), 4-279(1), 4-280(1), 4-299(1), 4-221(1), 4-224(1), 4-225(1), 4-226(1), 4-227(1), 4-228(1), 4-230(1), 4-236(1), 4-237(1), 4-273(2) 4-252(1), 4-275(4) 4-56(6)

1шт.

PX15V00025R500

REPAIR KIT

Consists Of Ref: 4-201(1), 4-223(1)

1шт.
