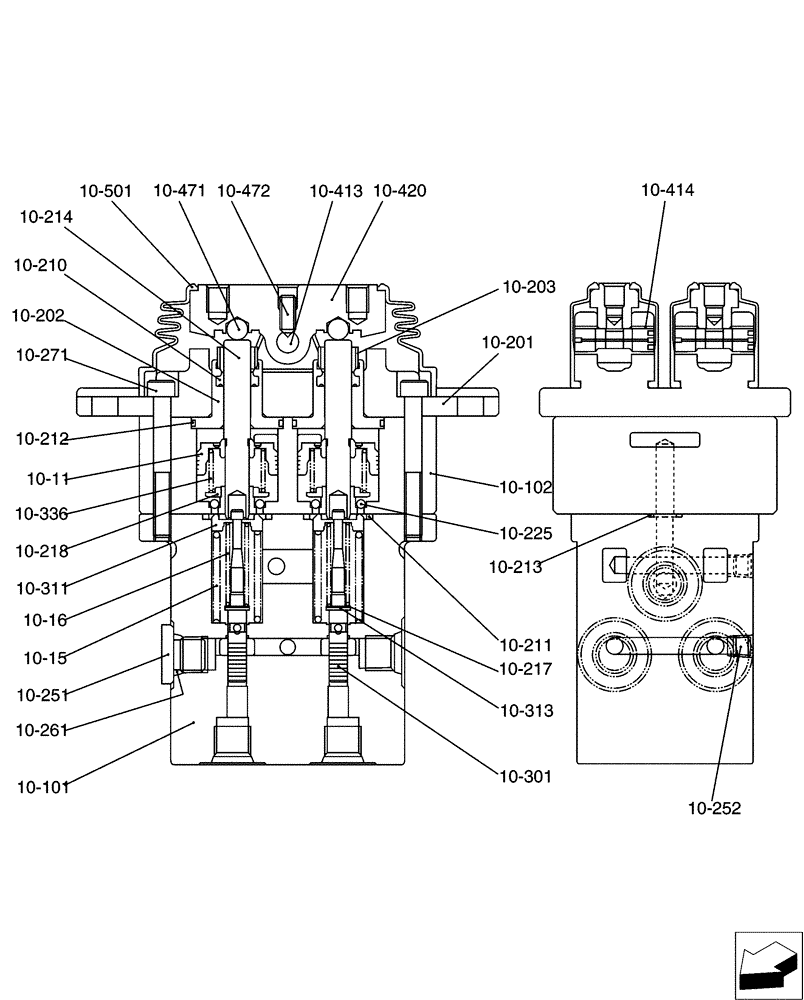

Запчасти Case CX31B (01-063[02]) - CONTROL LINES, PROPEL, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

10-11

NSS

NOT SOLD SEPARAT

Piston

4шт.

10-13

PM30V00019S013

4шт.

10-14

EN30V00045S335

SPRING

4шт.

10-101

NSS

NOT SOLD SEPARAT

Body

1шт.

10-102

NSS

NOT SOLD SEPARAT

Body

1шт.

10-201

PM30V00019S201

COVER

2шт.

10-202

PM30V00019S202

PLUG

4шт.

10-203

PM30V00019S203

CAP

4шт.

10-210

PM30V00019S210

PACKING

4шт.

10-211

PM30V00019S211

O-RING

4шт.

10-212

YT30V00009S212

O-RING

4шт.

10-213

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

10-214

EN30V00045S214

ROD

4шт.

10-217

EN30V00024S217

SHIM

4шт.

10-218

PM30V00019S218

SPRING SEAT

4шт.

10-225

2436U625S232

BALL

12шт.

10-251

YW30V00001S157

PLUG

3шт.

10-252

2441U722S490

PLUG

2шт.

10-261

ZD12P01100

O-RING

3шт.

10-271

PM30V00019S271

CAPSCREW

4шт.

10-301

NSS

NOT SOLD SEPARAT

Spool

4шт.

10-311

EN30V00045S311

SEAT

4шт.

10-313

EN30V00024S313

WASHER

4шт.

10-336

PM30V00019S336

SPRING

4шт.

10-413

NSS

NOT SOLD SEPARAT

Shaft

2шт.

10-414

EN30V00045S414

BUSHING

4шт.

10-420

NSS

NOT SOLD SEPARAT

Cam

2шт.

10-471

NSS

NOT SOLD SEPARAT

Ball

4шт.

10-472

NSS

NOT SOLD SEPARAT

Setscrew

2шт.

10-501

PM30V00019S501

BOOT

2шт.

PM30V00019R100

REPAIR KIT

Consist Of Ref:10-213(1), 10-210(4), 10-211(4), 10-212(4)

1шт.

PM30V00019R300

REPAIR KIT

Consist Of Ref:10-413(1), 10-420(1), 10-472(1), 10-471(2)

1шт.
