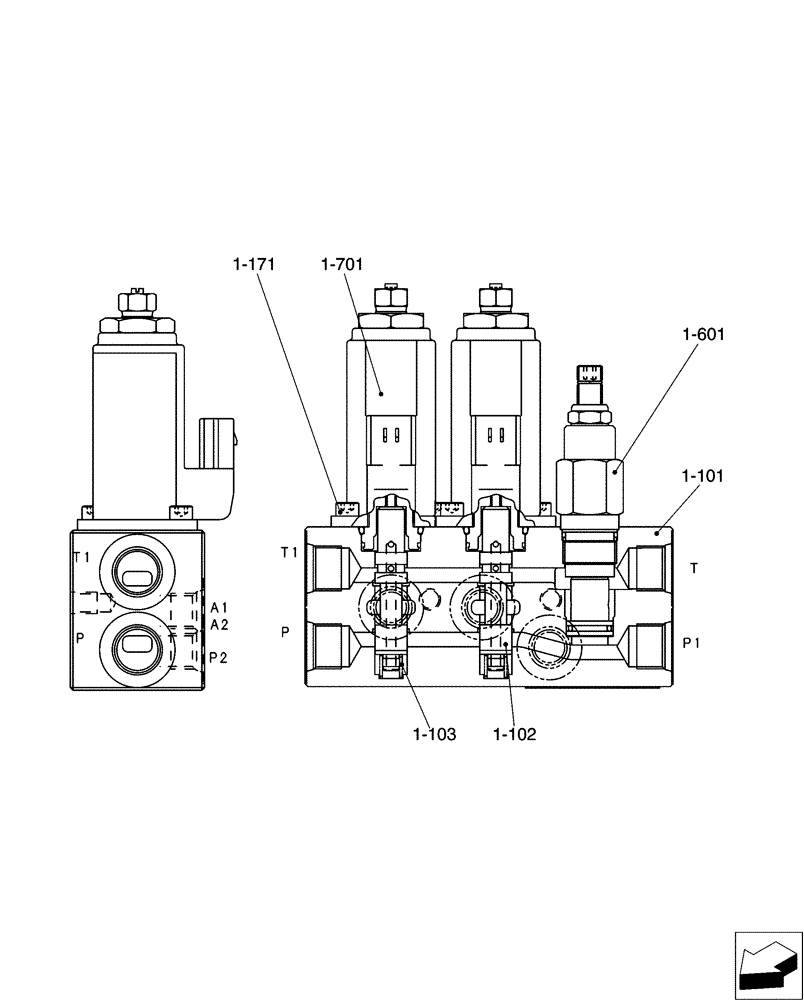

Запчасти Case CX31B (01-062[03]) - CONTROL LINES, VALVE, WITH A PUMP Z PORT (35) - HYDRAULIC SYSTEMS

1-101

PX35V00003S101

CASE

Body

1шт.

1-102

PX35V00003S102

SPOOL

2шт.

1-103

2436U1459S5

SPRING

2шт.

1-171

YX35V00002S171

SCREW,Hex Socket Head, M5 x 12mm

4шт.

1-601

YR22V00001F1

HYDRAULIC VALVE

Relief

1шт.

1-701

PX35V00003S701

SOLENOID

2шт.
