(01-062[02]) - CONTROL LINES, VALVE, WITH A PUMP Z PORT

Запчасти Case CX31B (01-062[02]) - CONTROL LINES, VALVE, WITH A PUMP Z PORT (35) - HYDRAULIC SYSTEMS

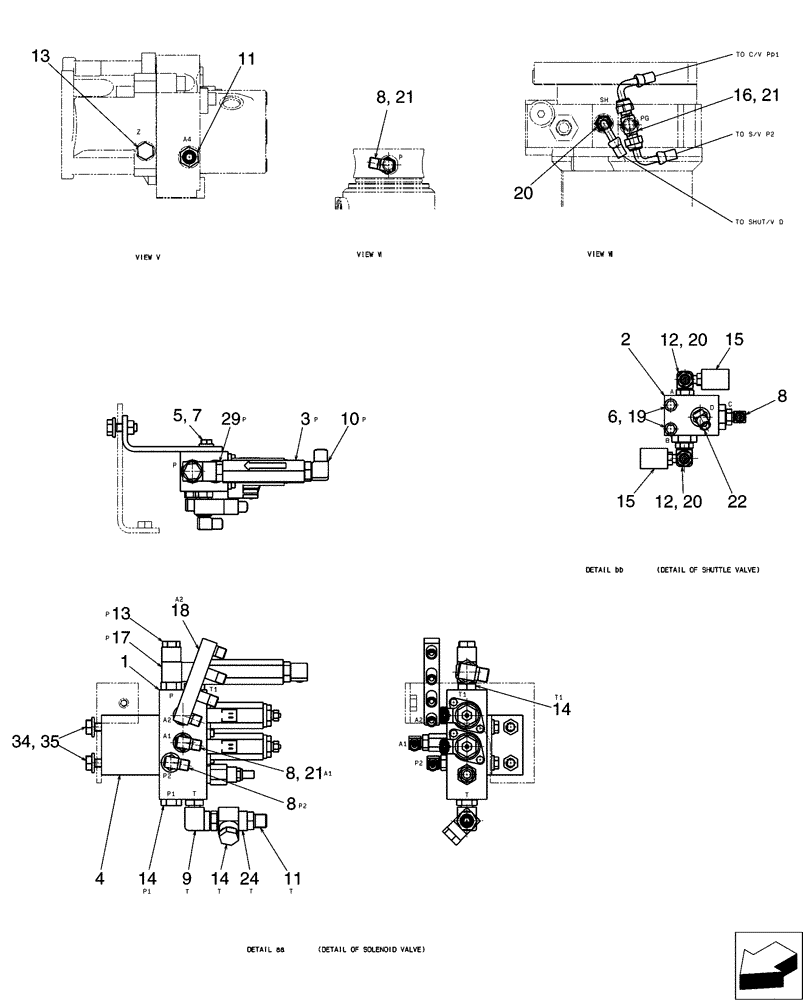

Схема запчастей Case CX31B - (01-062[02]) - CONTROL LINES, VALVE, WITH A PUMP Z PORT (35) - HYDRAULIC SYSTEMS
16
10
17
2
13
19
5
14
15
21
1
13
11
3
6
14
11
12
20
20
34
8
4
29
22
9
8
8
14
12
8
35
15
21
7
21
20
18
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PX35V00003F1

VALVE

Assembly, Solenoid (Used for Lever Lock, 2-speed Select)

1шт.

2

PH26V00001F1

VALVE

Shuttle

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

Filter, Inline

1шт.

4

PW64H01072P1

BRACKET

1шт.

5

ZS18C08020

SCREW,Hex, M8 x 20mm

Cap

2шт.

6

ZS18C06065

SCREW,Hex, M6 x 65mm

2шт.

7

ZW16H08000

WASHER

2шт.

8

HH35S04004G1

90 ELBOW

4шт.

9

YT42H01128P1

90 ELBOW

1шт.

10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

11

HH25S06006G1

HYD CONNECTOR

2шт.

12

2444Z3306

ELBOW

2шт.

13

ZE72X04000

PLUG

2шт.

14

ZE72X06000

PLUG

3шт.

15

GB50S00049F2

SWITCH

Pressure

2шт.

16

HH55L04004G2

TEE

1шт.

17

PW64H01011P1

TEE

1шт.

18

PH64H01057P1

CONNECTION

1шт.

19

ZW16H06000

WASHER

2шт.

20

HH25S04004G1

HYD CONNECTOR

3шт.

21

2444Z2525

HYD CONNECTOR

3шт.

22

HH45S04004G1

45 ELBOW

1шт.

24

HH55Q06006G1

TEE

1шт.

29

2444Z3326

HYD CONNECTOR

1шт.

34

ZS18C10030

SCREW,Hex, M10 x 30mm

Cap

2шт.

35

ZW16H10000

WASHER

2шт.
