(01-062[01]) - CONTROL LINES, VALVE, WITH A PUMP Z PORT

Запчасти Case CX31B (01-062[01]) - CONTROL LINES, VALVE, WITH A PUMP Z PORT (35) - HYDRAULIC SYSTEMS

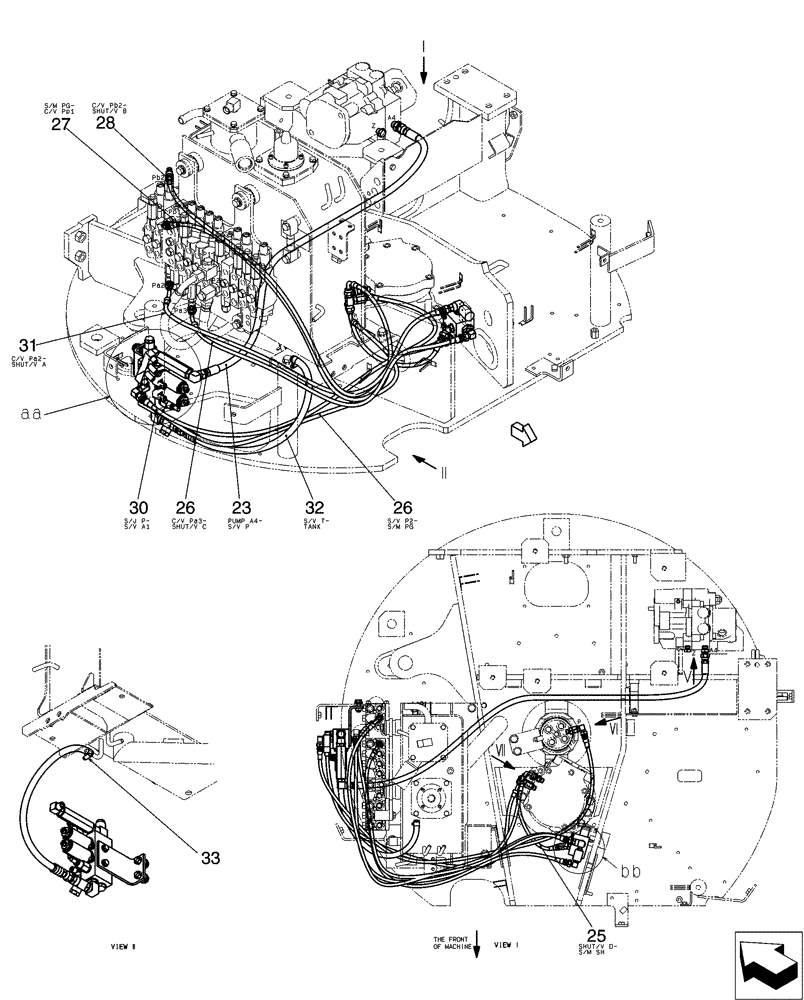

Схема запчастей Case CX31B - (01-062[01]) - CONTROL LINES, VALVE, WITH A PUMP Z PORT (35) - HYDRAULIC SYSTEMS
32
27
23
31
33
30
26
26
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

23

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

26

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

27

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

28

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

30

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

31

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

32

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

33

ZC16X01800

CLIP

1шт.

Выбрано товаров: 8
